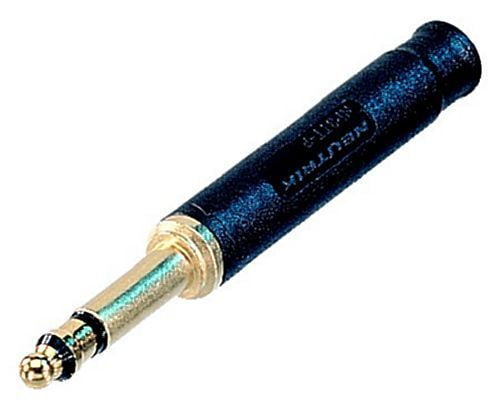

Neutrik TT Bantam Plug Connector (black)
Features
- Designed for pro audio applications
- Gold contacts guarantee best conductivity
- Robust egonomic design - long-lasting and depenable
- Standard HEX crimp cable clamp for shield termination and cable retention
- Colored sleeves available for coding and marking
Technical Information
Product | |
Title | NP3TT-P-AU-B |
Connection Type | Plug |
Gender | male |
Electrical | |
Contact resistance | depends on mating connector mΩ |
Dielectric strength | 1 kVdc |
Insulation resistance | > 2 GΩ (initial) |
Rated current per contact | depends on mating connector A |
Rated voltage | < 50 V |
Mechanical | |
Cable O.D. | 4 - 4.8 mm |
Crimp size | 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D) |
Lifetime | > 1000 mating cycles |
Wiresize | 0,25 mm² |
Wiresize | 24 AWG |
Wiring | Solder contacts |
Material | |
Bushing | Polyacetal (POM) + PU |
Contact plating | 0.2 µm Au TRIBOR® |
Contacts | Bronze (CuSn6) (Tip) |
Insert | Polyamide (PA 6.6 30 % GR) |
Shell | Brass (CuZn39Pb3) |
Shell plating | Polyamide (6 30% GR) (black) |
Environmental | |
Standard compliance | MIL-P-642/13 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -20 °C to +65 °C |
