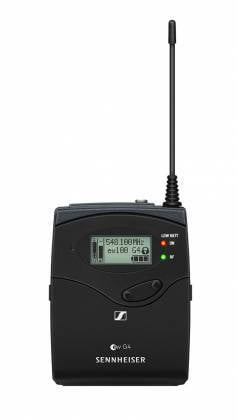

Sennheiser EM 100 G4-C
The Sennheiser EK 100 G4 is a camera-mount wireless receiver compatible with EW Series wireless microphone systems for videographers, YouTubers, and mobile journalists.
System
Wireless Transmission
Analog UHF
Number of RF Channels
1680
Diversity
Antenna Diversity
RF Frequency Band
G:
566 to 608 MHz
RF Bandwidth
42 MHz
Frequency Step Size
25 kHz
RF Channel Scanning
Auto-Scan
Max Operating Range
330' / 100.6 m (Line of Sight)
Max Systems per Setup
12
Modulation
Wideband FM
Receiver
Form Factor
Camera-Mount
Mounting Options
Shoe-Mount (with Included Hardware)
Antenna
1 x Flexible Whip, Fixed (Top-Mount)
Number of Audio Channels
1
Audio I/O
1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
Gain Range
42 dB (6 dB Steps)
Audio Output Level
+12 dBu (Unbalanced)
Squelch
5 to 25 dBμV
Adjacent Channel Isolation
>65 dB
Power Requirements
Battery
Battery Type
2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life
8 Hours (Alkaline)
Display & Indicators
1 x Backlit LCD (Battery Status, Output Level, RF Level)
Housing
Metal
Operating Temperature
14 to 131°F / -10 to 55°C
Dimensions
2.5 x 3.2 x 0.9" / 63.5 x 81.3 x 22.9 mm
Weight
5.6 oz / 160 g (with Batteries)
Packaging Info
Package Weight
1KG
Box Dimensions (L x W x H)
13.8 x 3.2 x 3.2"
Box Dimensions (L x W x H)
6.7 x 4.5 x 2.5"
