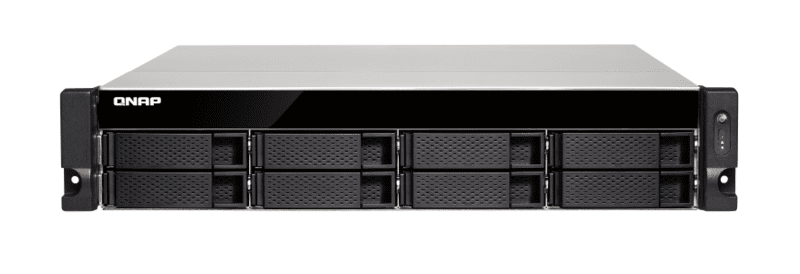

QNAP TS-863XU-RP 8-Bay NAS Enclosure
Designed for businesses that needs higher bandwidth for data centers and virtualization, the TS-863XU-RP 8-Bay NAS Enclosure from QNAP is equipped with one 10GbE port and four Gigabit Ethernet ports, delivering high-performance with persistent throughput and storage scalability. This NAS is powered by a 2.0 GHz AMD GX-249MC Quad-Core processor, 4GB of DDR3L RAM (upgradeable to 16GB), and support for JBOD, single disk, and a variety of RAID modes, including RAID 0, 1, 5, 6, and 10, 50, and 60, each of which offers data redundancy, speed, or a combination of both.
This 8-bay enclosure has the ability to natively house both 3.5" and 2.5" SATA III hard drives or SSD drives, and screws are included that accommodate each drive size. When using the 10GbE port, the TS-863XU-RP can deliver sequential read speeds of up to 985 MB/s and sequential write speeds of up to 483 MB/s. When using the 10GbE port with volume encryption, which helps to prevent sensitive business data from unauthorized access and breaches, read speeds top out at 1057 MB/s and write speeds reach 307 MB/s. Using the two external USB 3.0 Type-A ports and two external USB 2.0 Type-A ports, this QNAP NAS can be connected to other devices, such as QNAP UX-1200U-RP or UX-800U-RP expansion units.
QNAP's TS-863XU-RP 8-Bay NAS Enclosure operates using dual redundant 250W power supplies. Included are two Ethernet cables, two power cords, 3.5" HDD flat head screws, and 2.5" HDD flat head screws. Protection is provided by a limited 2-year warranty.
Key Features
- 8 x 3.5"/2.5" SATA III Drive Bays
- 2.0 GHz AMD GX-420MC Quad-Core
- 4GB of DDR3L RAM
- 1 x 10GbE | 4 x Gigabit Ethernet
- 2 x USB 3.0 Type-A | 2 x USB 2.0 Type-A
- RAID 0, 1, 5, 6, 10, 50, 60, and JBOD
- Up to 1057 MB/s Read & 483 MB/s Write
- AES-NI & AES 256-Bit Encryption
- Dual Redundant 250W Power Supplies
- QTS 4.3.4 Operating System
QNAP TS-863XU
Specification
Hardware Specifications
CPU | 2.0 GHz AMD G-Series GX-420MC Quad-Core |
Encryption Acceleration | AES-NI |
System Memory | 4 GB DDR3L (1 x 4 GB) |
Maximum Memory | 16 GB (2 x 8 GB) |
Memory Slots | 2 x SO-DIMM DDR3L |
Flash Memory | 512 MB DOM |
Drive Bays | 8 x 3.5" SATA III 6 Gb/s bays |
Drive Compatibility | 3.5" SATA III 6 Gb/s hard drives 2.5" SATA III 6 Gb/s hard drives 2.5" SATA III 6 Gb/s SSDs |
SSD Cache Acceleration Support | Drive bays 1 to 8 |
10 Gigabit Ethernet Port | 1 x RJ45 10GBASE-T via a pre-installed PCIe network card, supporting 10G/5G/2.5G/1G/100M speeds |
Gigabit Ethernet Port | 4 x RJ45 |
PCIe Slot | 1 x PCIe 2.0 x4 (pre-installed with a single-port 10GBASE-T network card) |
USB Ports | 2 x USB 3.0 |
LED Indicators | HDD 1-8, Status, USB, and LAN |
Audio | Alarm buzzer |
Buttons | Power, Reset |
System Warning | Voice prompts |
Form Factor | 2 RU |
Power Consumption | HDD Sleep Mode: 51.29 W (w/10GbE NIC) |
Sound Level | Sound Pressure (LpAm): 36.4 dBA |
Power Supply Unit | 2 x 250 W, 100-240 V |
Fans | 2 x 7 cm smart fans (12 VDC) |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Relative Humidity | 5 to 95% RH non-condensing, wet bulb: 81°F / 27°C |
Security Slot | Kensington security slot |
Dimensions | 3.50 x 18.98 x 21.02" / 88.9 x 482.1 x 533.9 mm |
Weight | 27.87 lb / 12.64 kg |
Software Specifications
Operating System | QTS 4.3.4 (embedded Linux) |
Client Operating Systems | Apple Mac OS 10.7 or later Linux and UNIX Microsoft Windows 7, 8, and 10 Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2, and 2016 |
Supported Browsers | Apple Safari 7 or later Google Chrome Microsoft Internet Explorer 10 or later Mozilla Firefox |
Supported Languages | Chinese (traditional and simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish |
Supported File Systems | Internal Hard Drives |
Network & Virtual Switch | - TCP/IP: Dual stack (IPv4 and IPv6) Virtual switch editing in Virtualization Station Combining virtual machines and containers in the same virtual switch Network Address Translation (NAT) Spanning Tree Protocol (STP) |
Security | Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP) Host access control for shared folders (CIFS/SMB) 140-2 validated AES 256-bit volume-based and shared folder data encryption (FIPS) 256-bit external drive encryption (AES) Importing of SSL certificates from Let's Encrypt Instant alerts through email, SMS, push service, audio, and LCD panel 2-step verification |
QVPN Service | VPN Server Secure remote access with PPTP, L2TP/IPSec, and OpenVPN services Support for a maximum of 100 clients Support for domain users Support for PPTP, L2TP/IPSec, and OpenVPN VPN protocols OVPN file importing for creation of OpenVPN connections |
iSCSI | iSCSI targets with multiple LUNs per target (Note: The maximum number of targets is 256) LUN mapping and masking Online LUN capacity expansion SPC-3 persistent reservation MPIO & MC/S iSCSI Extensions for RDMA (iSER) with VMware ESXi (Note: This feature requires a compatible Mellanox network card) iSCSI LUN backup, one-time snapshot, and restoration Virtual disks using iSCSI initiator (Note: The maximum number of virtual disks is eight) Stack chaining master |
Packaging Info
Package Weight | 32.2 lb |
Box Dimensions (LxWxH) | 27.75 x 22 x 10.5" |
