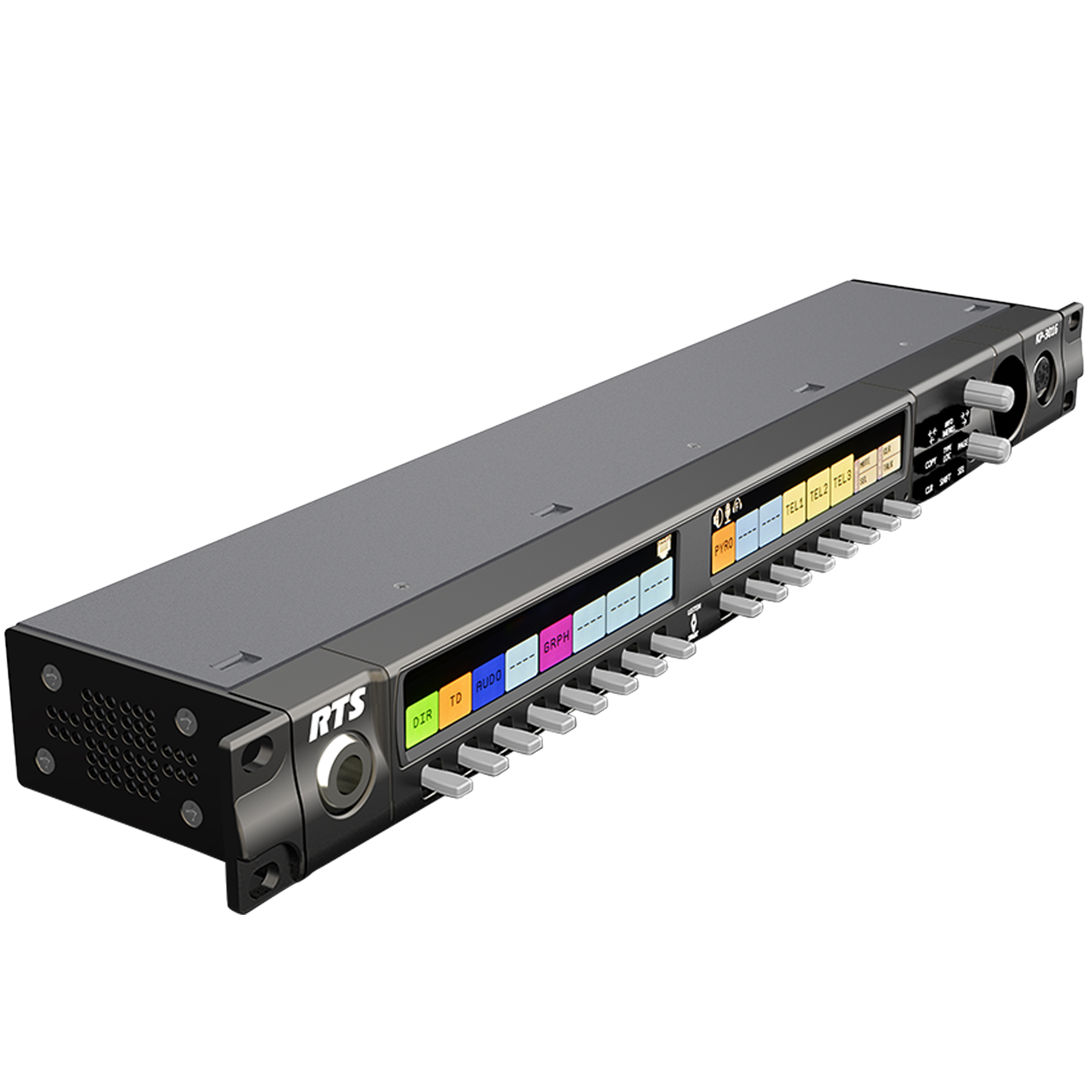

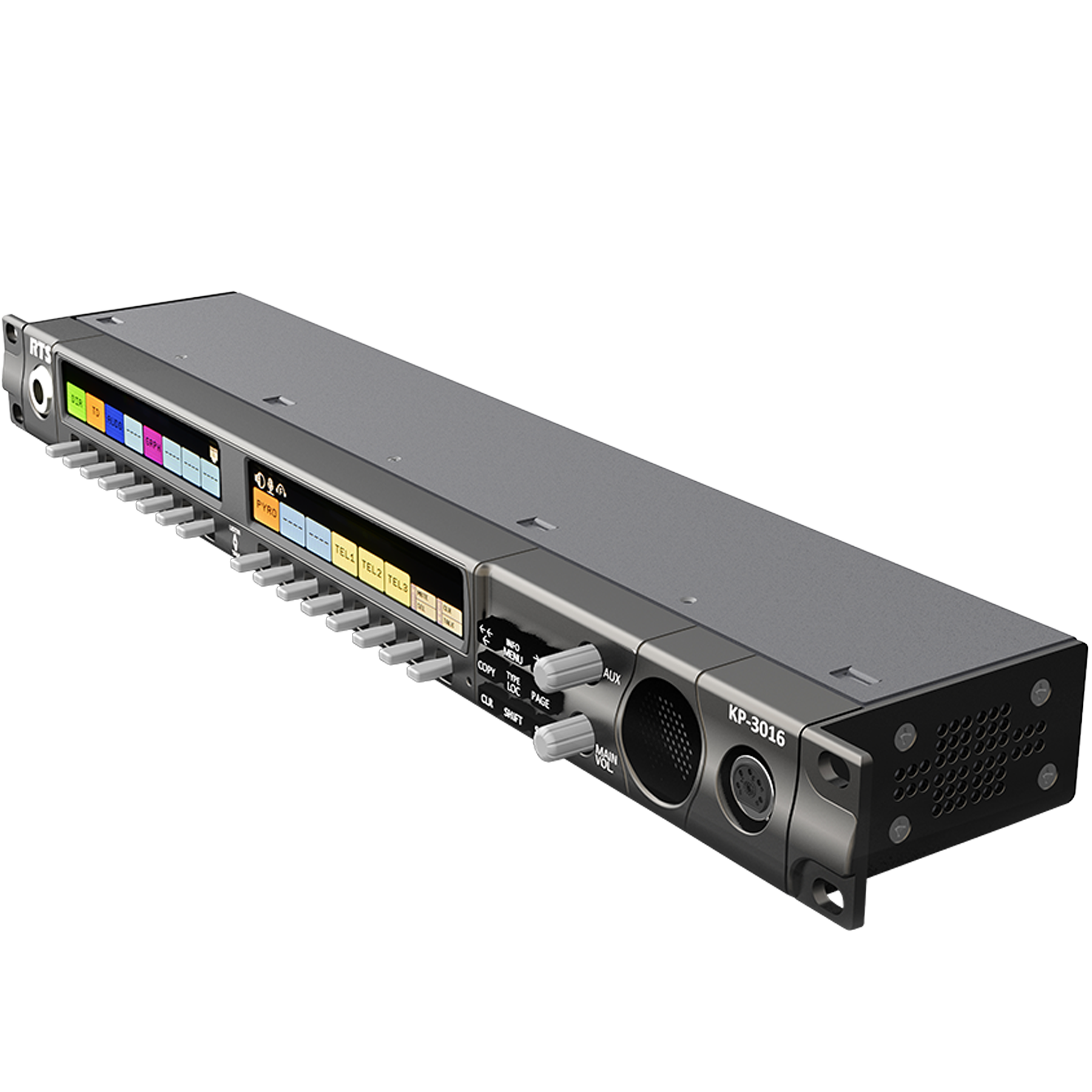

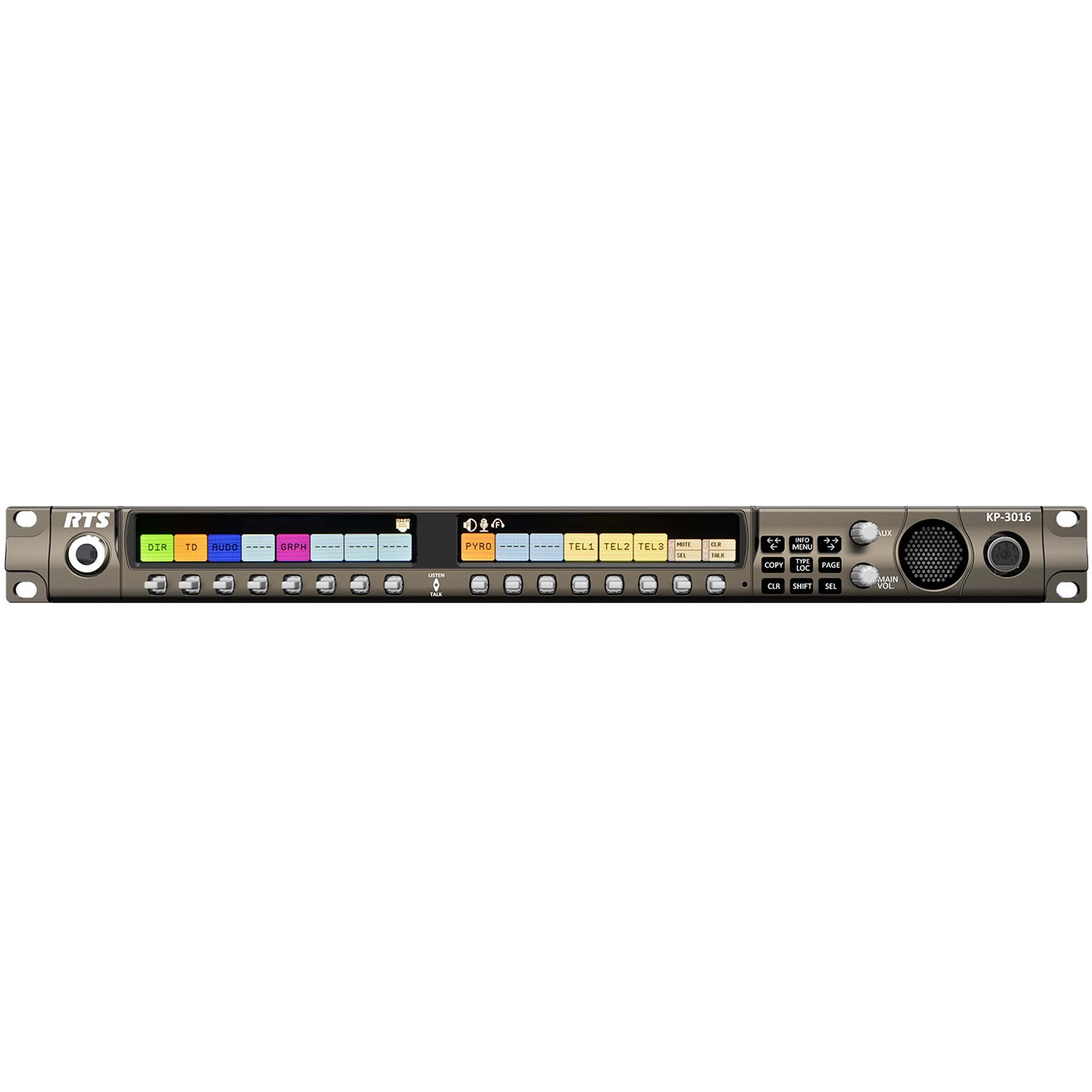

KP-3016a A5F
$2,453.09
14 Position Key Panel with dual directional lever keys for talk and listen. Key 15 is forHeadset Mute/Mic. Key 16 is for CWW Reply / Clear. Basic menu and programmingkeypad, extended DSP Functions, 2 full HD colour displays, standard analogue RTS matrixconnection. Headset connector A4F. Optional headset plug-in inlay A5F, A4M and A5Mavailable. 1 RU 19". Expansion by one EKP-3016. PSU mounting bracket included. UsesOPTIONAL MCP-90X microphones. KP3016 and KP3016A does not support the Audio upg& Control upg software packages
Product Details
| LCD Display | |
| Active Area | 120.10mm (wide) x 18.77mm (high) |
| Dot Resolution | 576 x 90 pixels |
| Color Resolution | 16-bit (64K)RGB color |
| View Angle | 80 degrees (typical; all directions) |
| Power Supply | |
| Type | External DC |
| AC Input | 100–240VAC 50/60Hz |
Specifications | |
| Inputs | |
| Matrix | |
| Type | Balanced |
| Typical Input Level | +8dBu |
| Typical Input Impedance | >10kΩ |
| Maximum Input Level | +20dBu |
| Supported Bandwidth | 100Hz to 20KHz |
| Panel Mic | |
| Type | Electret |
| Typical Input Level | -42dBu |
| Typical Input Impedance | 1kΩ |
| Maximum Input Level | -25dBu |
| Headset Mic - Electret | |
| Typical Input Level | -42dBu |
| Typical Input Impedance | 1kΩ |
| Maximum Input Level | -25dBu |
| Headset Mic - Dynamic | |
| Typical Input Level | -50dBu |
| Typical Input Impedance | 600Ω |
| Maximum Input Level | -25dBu |
| Outputs | |
| Matrix | |
| Type | Balanced |
| Typical Output Level | +8dBu |
| THD+N% | <0.20% |
| Typical Output Impedance | 600Ω |
| Maximum Output Level | +20dBu |
| Frequency Response | 100Hz to 20KHz |
| Headset | |
| Maximum | |
| Output Power | 125mW for 32Ω load |
| Earphone Impedance | 16Ω and above |
| THD+N% | <0.20% |
| Frequency Response | 100Hz to 20KHz |
| Speaker | |
| SPL | 84dBSPL for 1kHz sine wave @ 1 meter |
| Digital | |
| OMNEO Channels | |
| Typical OMNEO Latency | 1ms |
| Frequency Response | 20Hz - 20KHz |
| Environmental | |
| Dimensions | 17.39” W(without rack ears) x 1.72” H x 3.84” D [4.33" including volume knobs and lever keys] (441.82mm x 43.8mm x 97.54mm [109.99mm including volume knobs and lever keys]) |
| Weight | |
| KP-3016 | 3.35 lb (1.52 kg) |
| Power Supply | 0.53lb (.24kg) |
| Power Supply | |
| Power Supply | 0.53lb (.24kg) |
| Power Supply Mounting Bracket | 0.30lbs (.14kg) |
| Temperature | |
| Operating | 0° C to 55°C (32°F to 131°F) |
| Storage | -20°C to 70°C (-4°F to 158°F) |
| Power Consumption | |
| KP-3016 | |
| Nominal | 11 Watts |
| Maximum | 13 Watts |
| Maximum Volt Amp | 36 VA |
| KP-3016a | |
| Nominal | 8 Watts |
| Maximum | 10 Watts |
| Maximum Volt Amp | 36 VA |
| Certification | CE Compliance UL Certified |
