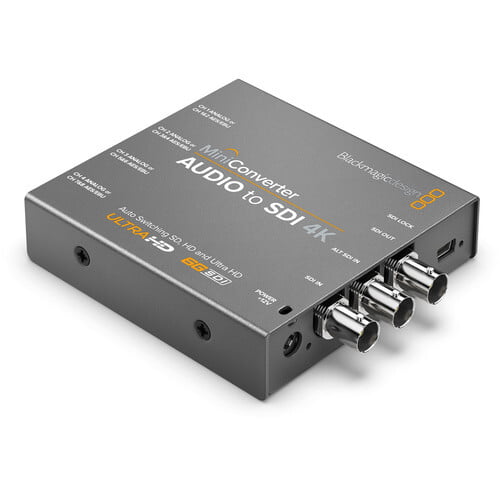

Blackmagic Design Mini Converter - Audio to SDI 4K

SDI Video Input

1 x SD/HD/3G/6G-SDI
1 x SD/HD/3G/6G-SDI-SDI redundant input

SDI Video Output

1 x SD/HD/3G/6G-SDI

Audio Output

4 x 1/4" jacks
4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio

Multi-Rate Support

Auto detection of SD, HD, 2K, UHD, and 4K signals

Reclocking

Yes

Format Support

SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25

HD:
720p 59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25

UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 23.98/24/25/29.97/30

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601

SDI Video Rates

Switchable between SD, HD, 3G, and 6G-SDI

SDI Auto Switching

Automatically detects SD, HD, 3G, or 6G-SDI

SDI Video Sampling

4:2:2, 4:4:4

SDI Audio Sampling

24-bit, 48 kHz

SDI Color Precision

4:2:2, 4:4:4

SDI Color Space

YUV, RGB

Settings Control

DIP switches or USB software for Mac OS X and Windows

Firmware Upgradeable

Via USB 2.0

Power Supply

12 VDC

Power Consumption

8.4 W

Operational Voltage Range

12 to 31 VDC

Operating Temperature

32 to 104° F (0 to 40 ° C)

Storage Temperature

-4 to 113° F (-20 to 45 ° C)

Relative Humidity

0 to 90% non-condensing

Dimensions

4.52 x 3.63 x 0.90" (11.48 x 9.22 x 2.29 cm)

Weight

7.61 oz (215.74 g)
