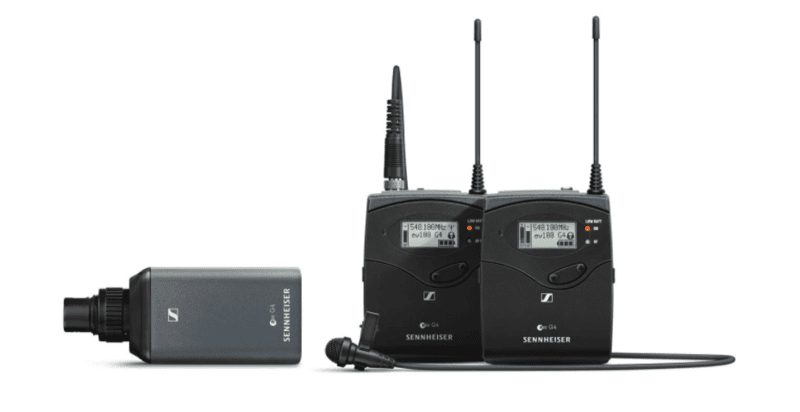

Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System (G: 566 to 608 MHz)

• Frequency range

  A: 516 - 558 MHz

  A1: 470 - 516 MHz

  AS: 520 - 558 MHz

  B: 626 - 668 MHz

  C: 734 - 776 MHz

  D: 780 - 822 MHz

  E: 823 - 865 MHz

  G: 566 - 608 MHz

  GB: 606 - 648 MHz

  JB: 806 - 810 MHz

  K+: 925 - 937,5 MHz



• Dimensions

  Approx. 82 x 64 x 24 mm



• Compander

  Sennheiser HDX



• THD, total harmonic distortion

  ≤ 0.9 %



• Weight

  (incl. batteries) approx. 160 g



• Audio output

  3.5 mm jack socket: +12 dBu (mono, unbalanced)



• Signal-to-noise ratio

  ≥ 110 dBA



• Switching bandwidth

  up to 42 MHz



• Peak deviation

  ±48 kHz



• Nominal deviation

  ±24 kHz



• Operating time

  Typically 8 h



• Modulation

  Wideband FM



• Power supply

  2 AA batteries, 1.5 V or BA 2015 accupack



• Current consumption

  at nominal voltage: typ. 180 mA

  with receiver switched off: ≤ 25 µA



• Adjacent channel rejection

  ≥ 65 dB



• Intermodulation attenuation

  ≥ 65 dB



• Powering

  3 V battery / 2.4 V rechargeable battery



• Receiving frequency

  Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels



• RF sensitivity

  < 1.6 μV for 52 dBA eff S/N



• Squelch

  low: 5 dBµV middle: 15 dBµV high: 25 dBμV



• Temperature Range

  -10 °C to +55 °C



• Receiver Principle

  Adaptive diversity



• Blocking

  ≥ 70 dB

SK 100 G4

• Dimensions

  Approx. 82 x 64 x 24 mm



• Compander

  Sennheiser HDX



• THD, total harmonic distortion

  ≤ 0.9 %



• Weight

  (incl. batteries) approx. 160 g



• Signal-to-noise ratio

  ≥ 110 dBA



• RF output power

  Max. 30 mW



• Switching bandwidth

  up to 42 MHz



• Peak deviation

  ±48 kHz



• Nominal deviation

  ±24 kHz



• Operating time

  Typically 8 h



• Modulation

  Wideband FM



• Power supply

  2 AA batteries, 1.5 V or BA 2015 accupack



• Current consumption

  at nominal voltage: typ. 180 mA

  with transmitter switched off: ≤ 25 µA



• Input impedance

  40 kΩ, unbalanced / 1 MΩ



• Max. Input voltage

  3 Veff



• Powering

  3 V battery / 2.4 V rechargeable battery



• Transmission frequency

  Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels



• AF frequency response

  Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz



• Temperature Range

  -10 °C to +55 °C



• Frequency stability

  ≤ ±15 ppm

SKP 100 G4

• Dimensions

  Approx. 105 x 43 x 43 mm



• Compander

  Sennheiser HDX



• THD, total harmonic distortion

  ≤ 0.9 %



• Weight

  (incl. batteries) approx. 195 g



• Signal-to-noise ratio

  ≥ 110 dBA



• RF output power

  Max. 30 mW



• Switching bandwidth

  up to 42 MHz



• Peak deviation

  ±48 kHz



• Nominal deviation

  ±24 kHz



• Operating time

  Typically 8 h



• Modulation

  Wideband FM



• Power supply

  2 AA batteries, 1.5 V or BA 2015 accupack



• Current consumption

  at nominal voltage: typ. 180 mA

  with transmitter switched off: ≤ 25 µA



• Input impedance

  68 kΩ, unbalanced



• Max. Input voltage

  3.3 Veff



• Powering

  3 V battery / 2.4 V rechargeable battery



• Transmission frequency

  Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels



• AF frequency response

  80 – 18,000 Hz



• Temperature Range

  -10 °C to +55 °C



• Frequency stability

  ≤ ±15 ppm

ME 2

• Connector

  3.5 mm jack



• Frequency response

  50 to 18,000 Hz (ME 2-II)



• Max. sound pressure level

  130 dB



• Cable length

  approx. 1.60 m



• Transducer principle

  pre-polarized condensor microphone



• Pick-up pattern

  omni-directional



• Sensitivity in free field, no load (1kHz)

  20 mV/Pa



• Equivalent noise level

  36 dB
