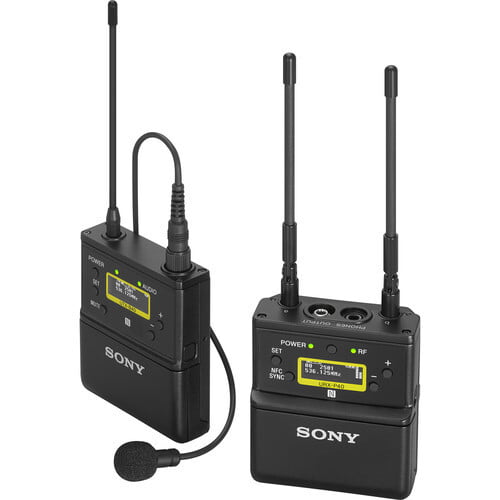

Sony - UWP-D21-K42 - UHF Wireless Microphone Package

Specifications

General

·  operating temperature: 0 ° C to 50 ° C

·  Dimensions: 63 x 73 x 19 mm (without antenna)

·  Weight: 83 g (without batteries)

Receiver

·  Oscillator type: crystal controlled PLL synthesizer

·  Type of reception: true diversity method

·  Carrier frequency: 638.125 MHz to 697.875 MHz (UHF TV channels 42 to 51)

·  Frequency range: 23 Hz to 18 kHz (typical)

·  Signal-to-noise ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)

·  Distortion (THD): 0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio delay:

·  approx. 0.35 ms (analog output)

·  approx. 0.24 ms (digital output)

·  Audio output connector: 3.5 mm jack (lockable)

Audio output level:

·  -60 dBV (3.5 mm diameter 3-pin, lockable mini jack, analog output, 0 dB audio output level)

·  -20 dBFS (external connection, digital output, 0 dB audio output level)

·  -50 dBFS (external connection, analog output, 0 dB audio output level)

·  Setting range for analog audio output: -12 dB to +12 dB (3 dB steps)

·  Headphone jack: 3.5 mm jack

·  Headphone output level: Max. 10mW (16 ohms)

Signal frequency of the audio signal:

·  in UWP-D Compander mode: 32.382 kHz

·  in UWP Compander mode: 32 kHz

·  in Compander mode WL800: 32.768 kHz

·  Display: OLED

Electricity demand:

·  DC 3.0 V (two AA alkaline batteries)
