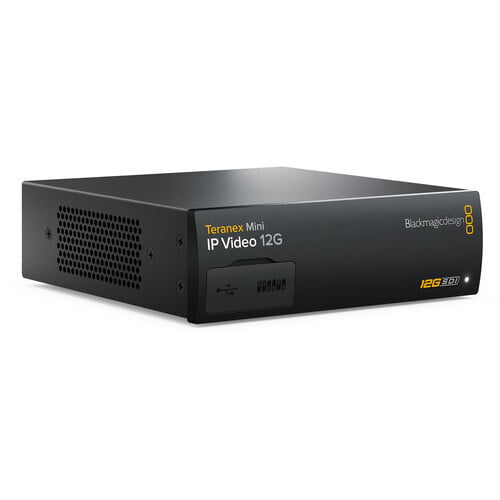

Blackmagic Design Teranex Mini IP Video 12G

Video Input Connectors

1 x BNC (12G-SDI)

Input Video Format

SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps

Embedded Audio Input

SDI
RJ45

Video Output Connectors

2 x BNC (12G-SDI)

Output Video Format

SDI (10-Bit 4:4:4/4:2:2 YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps

Embedded Audio Output

SDI
RJ45

Video Standard Compliance

SMPTE 259M/292M/296M/310M/425M
ITU -R BT.601/BT.656

Other I/O

1 x RJ45 Input/Output

Expansion Slots

1 x SFP Slot

Video IP Encoding

TICO: 4096 x 2160

Video IP Decoding

TICO: 4096 x 2160

Memory Card Slots

1 x SD (Unspecified Type)

Wi-Fi Support

Yes

OS Compatibility

macOS
Windows

Power Connector

1 x RJ45 (48 VDC) Input
1 x IEC C14 Input

Power Consumption

Device: 90 to 240 VAC (16 W)

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-20 to 140°F / -28 to 60°C

Operating Humidity

0 to 90%

Dimensions

6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm

Weight

1.28 lb / 581 g

Warranty Length

Limited 3-Year Warranty
