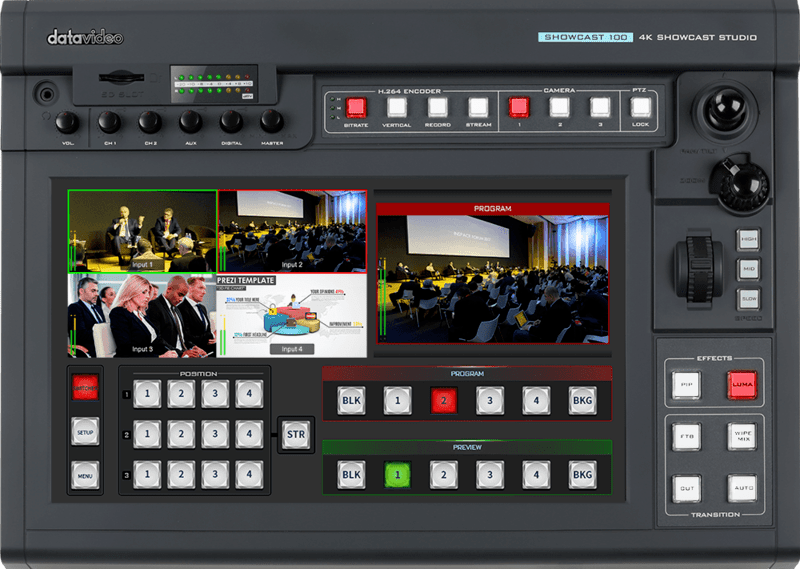

Datavideo SHOWCAST 100 4K Switcher with Built-In Streaming Encoder
Model Number
SHOWCAST 100
Video Standard
4K & HD
Video Format
Input:
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
VGA, XGA (1024 x 768), SXGA (1280 x 1024),
UXGA (1600 x1200), WUXGA (1920 x 1200)
Output:
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
Video Processing
4K60
YUV4:4:4 8bit, YUV 4:2:2 8/10bit, YUV 4:2:0 8bit, RGB 4:4:4 8bit
4K30
YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, YUV 4:2:0 8bit,
RGB 4:4:4 8/10/12bit
HD
YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, RGB 4:4:4 8/10/12bit
Input Routable / Crosspoint
N/A
Video Input
4 x HDMI 2.0
Mix HD & SD Source
----
Computer Graphic Interface
4 via HDMI
Video Output
3 x HDMI 2.0 for PGM
1 x HDMI for CG Preview
Down-converted Output
Yes
Built-in Multi-view Monitoring Out
On 14" Touch Panel
Analogue Audio Input
2 x 3 Pin XLR / 1/4” (6.3mm) Combo Socket
1 x Stereo RCA set (L/R)
Audio Input Switch: Stereo / Mono
Analogue Audio Output
1 x Stereo RCA set (L/R)
1 x Stereo headphone (Mini Jack with volume control)
Digital Embedded Audio Support
Input 2 channels, Output 2 channels
Audio Delay Calibration
Up to 200ms
A+V Switching
Yes
Chromakey
----
Title Creator
Web GUI
USK
Lumakey
DSK
----
Picture in Picture
1
Logo Insertion
----
Still Store
----
Effects
Seamless Cut, WIPE, Mix
Transition Preview
----
Sync / Reference In/Out
Built-in Genlock (internal)
Tally Output
D-Sub -15 Male connector
PC Remote Control
Web browser UI for configuration and control
Socket commands
Camera Control
DVIP/ RS-422/ RS-232
Built-in Audio Mixer
Yes
Storage
1 x SD Card Slot
Supports SD, SDHC and SDXC card (UHS-I) (Class 10 above)
Recording File System
FAT, NTFS, exFAT
Recording File Format
MP4
Video Encode
H.264 / AVC, Main/ High Profile
Record Only: Up to 16Mbps (1080p 50/60)
Stream Only: Up to 10Mbps (1080p 50/60)
Rec and Stream: Up to 10Mbps (1080p 25/30)
Rec and Stream: Up to 36Mbps (1080p50/60), Dual Stream
Audio Encode
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP (Publish)
Firmware Update
Ethernet, USB
Special Features
14.0" Touchscreen Display
Chassis
Unibody
Dimension (LxWxH)
437.6 x 330.5 x 96.5mm
Weight
5.4 Kg
Power
DC 12V 82W
Operating Temp. Range
0~40 °C
What's in the Box
1 x Showcast 100 product
1 x AD Switch DC 12V with AC Cord
