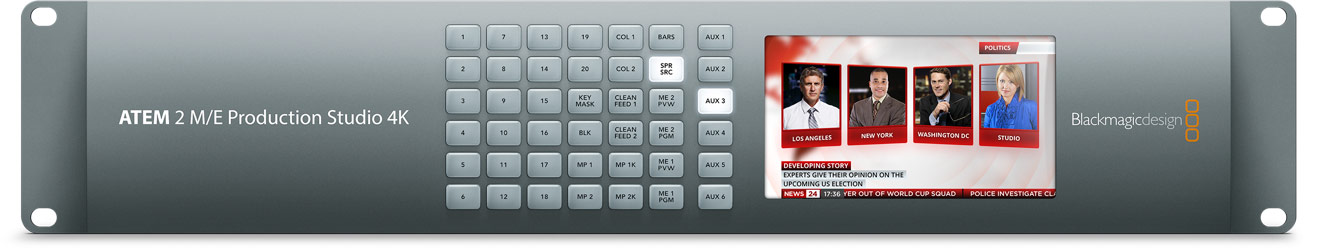

Blackmagic Design ATEM 2 M/E Production Studio 4K

Ultra HD Support	3840 x 2160p 23.98/24/25/29.97
HD Format Support	720p 50/59.94 1080i 50/59.94 1080p 23.98/24/25/29.97/50/59.94
SD Format Support	NTSC: 525/29.97 - 4:3/16:9 PAL: 625/25 - 4:3/16:9
HDMI Input Resolution Supported	Input resolutions for computer: 720 x 480i 59.94 Hz 720 x 576i 50 Hz 1280 x 720 50/59.94 Hz 1920 x 1080 50/59.94 Hz 3840 x 2160 23.98/24/25/29.97 Hz Note: Also supported are: 24, 30, and 60 Hz inputs when switcher is in 23.98, 29.97, and 59.94 Hz formats respectively.
SDI Compliance	SMPTE 259M, 292M

Connectivity

Video Inputs	20 x SDI (10-bit SD/HD/Ultra HD switchable) 1 x HDMI Type A (10-bit SD/HD/Ultra HD switchable) 2 Channel embedded audio for SDI and HDMI inputs
Audio Input	Digital 20 x Embedded audio via SDI or HDMI Analog 2 x XLR 2 x RCA Extra Audio Inputs 1 x XLR Timecode 1 x XLR Talkback
Audio Output	SDI Audio Output 2 Channels embedded into SDI outputs Analog 2 x XLR Program 2 x XLR Montior Extra Audio Outputs 1 x XLR Timecode 1 x XLR Talkback
Sync Input	1 x SDI, Tri-Sync or Blackburst
Frame Synchronizer	20 x Internal frame synchronizers (all inputs)
Program Output	3 x SDI (10-bit SD/HD/Ultra HD switchable) 1 x HDMI Type A (10-bit SD/HD/Ultra HD switchable) 1 x SDI (Ultra HD to HD downcoverted output)
Preview Output	1 x SDI (10-bit SD/HD/Ultra HD switchable)
Auxiliary Output	6 x SDI (10-bit SD/HD/Ultra HD switchable)
Multi View Output	2 x SDI 2 x HDMI
Multi View Output	1 x SDI 1 x HDMI
Ethernet	1 x 10/100/1000 BaseT input. Allows direct connection between control panel and chassis, or via network
Tally Output	Added via Ethernet connection to Blackmagic Designed GPI and Tally Interface product (sold separately)
GPI	Added via Ethernet connection Note: GPI and Tally Interface product are optional and are not included
USB Interface	1x USB 2.0 port

Processing

Color Space Conversion	Hardware based, real time
Processing Delay	<2 lines
Video Sampling	4:2:2
Color Space	REC 601 REC 709 REC 2020
Color Precision	10-bit
Audio Mixer	22 input mixer (2 channels per input) Selectable On/Off/Audio-Follow-Video Level and Peak metering Master gain control Dedicated analog outputs for monitoring

Built-in Media Players

Quantity	2
Channels	2 x per Media Player (fill and key)
Still Image Capacity	32 with fill and key
Clip Capacity	Quantity 2 with fill and key Maximum Clip Length Ultra HD: 180 frames 1080p/i: 720 frames 720p: 1600 frames NTSC/PAL: 3600 frames
Image File Formats	Still PNG, TGA, BMP, GIF, JPEG, and TIFF Video TGA sequence Audio WAV, MP3, AIFF

Multi-View Monitoring

Display	Minimum monitor resolution: 1366 x 768
Number of Windows	2 Multi-view display with 10 x windows for: Preview Program 16 x assignable displays
Tally	Red for program and green for preview indication Note: Requires optional Blackmagic Design GPI and Tally interface product
Window Source Labels	Yes

Front Panel Controls

Buttons	42 LED buttons for Aux switching
LCD Display	LCD display of Aux output

Control Panel

Compatibility	ATEM 2 M/E Broadcast Panel (preferred) ATEM 1 M/E Broadcast Panel
Software Compatibility	ATEM Software Control Panel Mac OS X 10.8 Mountain Lion OS X 10.9 Mavericks or later Windows Windows 7 64-bit Windows 8 32/64-bit Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

Extras

Layers	13 total
Keyers	4 x Upstream 2 x Downstream 7 x Linear/Luma 1 x Stinger 4 x Chroma 1 x DVE, with 3D borders and drop shadows
Generators	7 x Pattern 2 x Color

Power

Power Supply	2 x built-in power supply 110/240 VAC, 50/60 Hz Note: IEC power cord required, not included
Power Consumption	150 W

General

Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Relative Humidity	0 to 90% non-condensing
Rack Size	2 RU
Dimensions (W x H x D)	19.00 x 3.54 x 9.25" (48.26 x 8.99 x 23.46 cm)
Weight	9.0 lb (4.1 kg)

Packaging Info

Package Weight	4.45 kg
Box Dimensions (LxWxH)	19.4 x 10.8 x 5"
