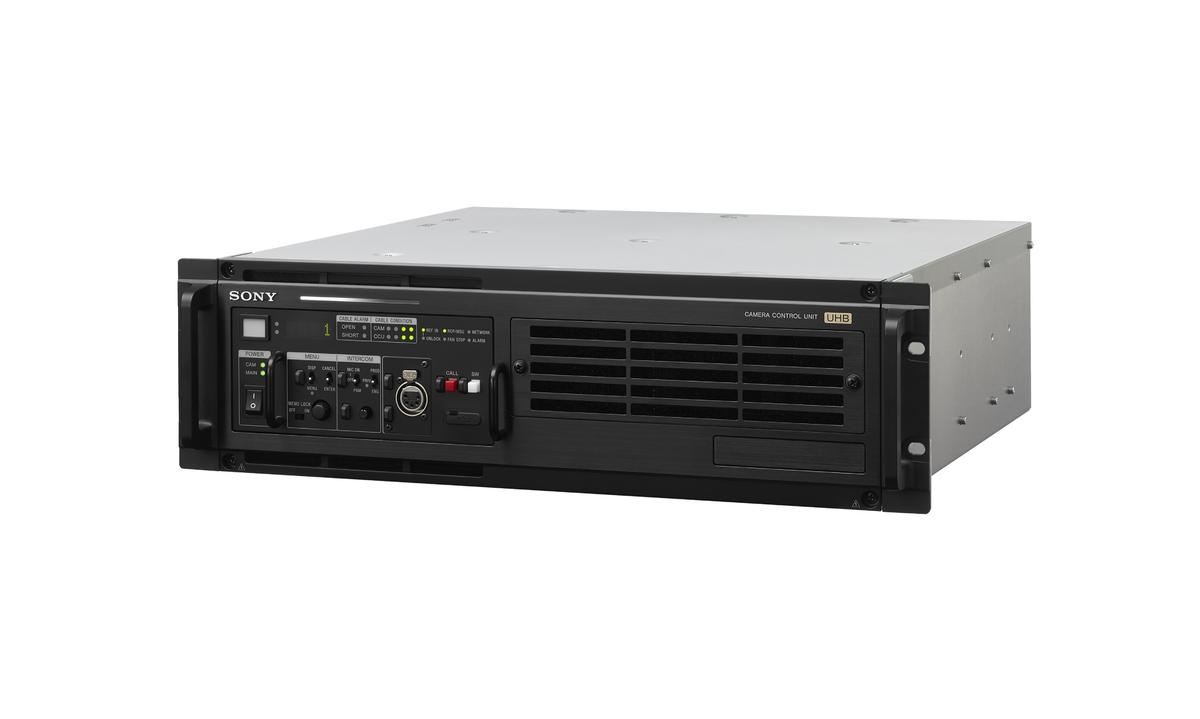

Sony HDCU-5000 - Camera Control Unit (CCU) for HDC-5500 and HDC-3500/3100 series system cameras

 specification

• Versatile built-in interfaces:
• The HDCU-5000 features a wide range of built-in interfaces, including 12G-SDI/3G-SDI/HD-SDI outputs and 12G-SDI/3G-SDI/HD-SDI return inputs.
• The CCU offers four 12G-SDI outputs and a maximum of eight 3G-SDI outputs as standard. Adding the optional HKCU-SDI50 expands this to a maximum of eight 12G-SDI outputs.
• LAN interface for network control:
• The HDCU-5000 includes a built-in LAN interface (10BASE-T/100BASE-TX). This allows the camera to be controlled over a network, and this interface can also be used for an IP TALLY function.
• Additional interfaces for teleprompter and microphones:
• The HDCU-5000 features a single-channel teleprompter input, plus two-channel microphone outputs (via two XLR connectors).
• UHD trunk line for additional camera picture:
• The CCU's trunk like supports transmission of two 4K UHD channels. 4K 2x slow motion or two kinds of 4K picture (main plus other camera, e.g. a POV picture which is input to the trunk line) can also be transmitted.
• High power supply:
• The CCU's high power supply allows HDC-5500 series cameras to operate with the HDLA-1500/HDLA-1505/HDLA-1507 HD large lens adaptors.
• Extensive expansion options:
• The HDCU-5000 offers five types of interface expansion option.
• The HKCU-SDI50 provides four additional 12G-SDI interfaces.
• The HKCU-SFP50 provide an ST 2110 IP interface (including IP intercom function), with the HKCU-SFP52 adding IP HFR (High Frame Rate) capability to the system.
• The HKCU-SM50 provide a single mode fibre connection capability between the camera and CCU. The HKCU-REC50 adds a CCU internal recording capability, allowing up to 4 hours recording time at 4K XAVC-I C300.
• Multi-format functionality:
• The CCU offers multi-format support for 4K up to 2x, HD HFR up to 8x, PsF format, 1080-4:4:4-RGB (@23.98PsF, 24PsF, 25PsF, 29.97PsF).
• Gigabit Ethernet trunk line:
• The HDCU-5000 CCU features a single channel trunk line (1Gb Ethernet) to support easy data transmission.
• Recording and real-time network transfer:
• Adding the HKCU-REC50 internal recording option allows the HDCU-5000 CCU to record the camera's live feed (up to 4 hours recording time at 4K XAVC-I C300).
• Footage can be transfered in real time to a connected USB solid state drive or NAS (Network Attached Storage) device while recording takes place.
• As soon as shooting is finished, the file is immediately available on the attached storage device.
