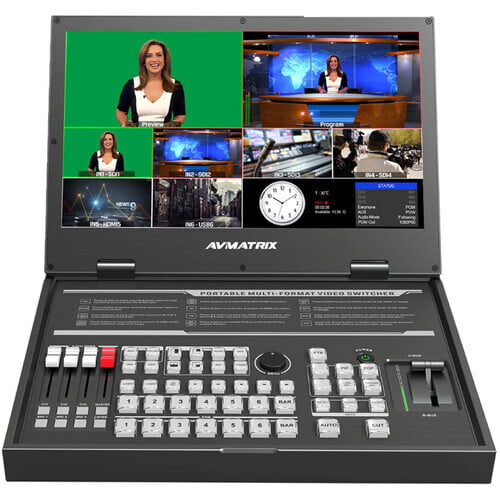

AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6" Display

Video Input Connectors

2 x HDMI
4 x BNC (3G-SDI)
2 x DVI-I DL (DVI / VGA)

Input Video Format

HDMI (4:4:4/4:2:2 RGB, YUV)
UHD 4K: 30/50/60 fps
DCI 2K: 30/50/60 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
576p: 50 fps
576i / 625 lines: 50 fps
SDI (4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
NTSC
PAL
DVI / VGA
1080p
WUXGA+ (1680 x 1050)
UXGA (1600 x 1200)
HD+ (1600 x 900)
WXGA+ (1440 x 900)
FWXGA (1366 x 768)
1360 x 768
SXVGA (1280 x 1024)
SXGA- (1280 x 960)
WXGA (1280 x 800)
1280 x 768
720p
XGA+ (1152 x 864)
XGA (1024 x 768)
VGA (640 x 480)

Audio Input Connectors

1 x 2RCA Analog

Video Output Connectors

2 x HDMI (Program)
2 x BNC (3G-SDI) (Program)
1 x USB Type-C

Output Video Format

HDMI / SDI
1080p: 24/25/30/50/60 fps
1080i: 50/60 fps
USB Type-C
WUXGA (1920 x 1200)
1080p
WUXGA+ (1680 x 1050)
WXGA+ (1440 x 900)
FWXGA (1366 x 768)
SXGA (1280 x 1024)
1280 x 960
WXGA (1280 x 800)
720p
XGA (1024 x 768)
1024 x 576
960 x 540
856 x 480
SVGA (800 x 600)
PAL (768 x 576)
720 x 576
720 x 480
VGA (640 x 480)
640 x 360

Audio Output Connectors

1 x 2RCA Analog
1 x 1/8" / 3.5 mm TS

Multiview Output

6-Way Multiview viaHDMI

Other I/O

2 x USB Type-A Input
1 x BNC Output
1 x DB-25 Tally
1 x RJ45 Firmware, LAN, Sync

Video Standard Compliance

SMPTE 259M/292M/424M

Display Size

15.6"

Screen Resolution

1920 x 1080

OS Compatibility

Windows 10
Windows 8
Windows 7
macOS 10.8 or Later
Linux 2.6.38 or Later

Power Connector

1 x Barrel (12 VDC at 2.8 A) Input

Power Consumption

33 W

Operating Temperature

-4 to 140°F / -20 to 60°C

Storage Temperature

-22 to 158°F / -30 to 70°C

Operating Humidity

20 to 70%

Storage Humidity

90%

Weight

Package Weight

Box Dimensions (LxWxH)

21.5 x 16.6 x 7.1"
