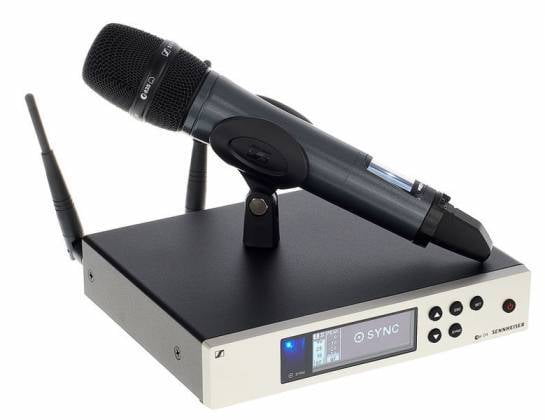

Sennheiser EW 100 G4-835-S-A1
Frequency range
1G8: 1785 - 1800 MHz
A: 516 - 558 MHz
A1: 470 - 516 MHz
AS: 520 - 558 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
A: 516 - 558 MHz
AS: 520 - 558 MHz
GB: 606 - 648 MHz
G: 566 - 608 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
1G8: 1785 - 1800 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
Dimensions
Approx. 190 x 212 x 43 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
Approx. 980 g
Audio output
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Signal-to-noise ratio
≥ 110 dBA
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Modulation
Wideband FM
Power supply
12 V DC
Antenna connector
2 BNC sockets
Current consumption
300 mA
Adjacent channel rejection
Typically ≥ 65 dB
Intermodulation attenuation
Typically ≥ 65 dB
Receiving frequency
Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity
< 2.5 μV for 52 dBA eff S/N
Squelch
low: 5 dBµV middle: 15 dBµV high: 25 dBμV
Equalizer
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range
-10 °C to +55 °C
Receiver Principle
True diversity
Blocking
≥ 70 dB
