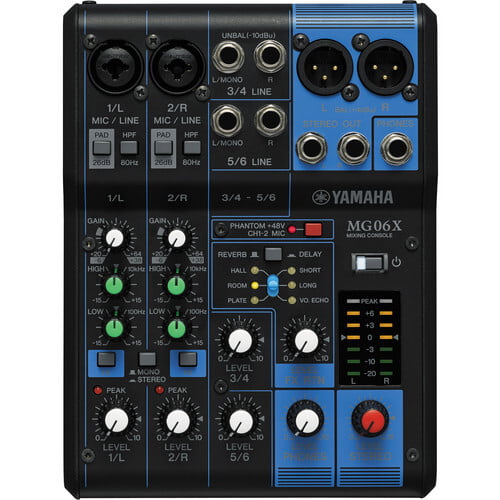

Yamaha MG06X 6-Input Mixer with Built-In Effects

Effects Engine

SPX Algorithm: 6 Programs (3 Reverb, 3 Delay)

Input Channels

2 x XLR-1/4" Combo (Mic/Line)
2 x 1/4" / 6.3 mm Stereo (Line)

Phantom Power

+48 V Switchable, Channels 1, 2

Output Channels

2 x XLR Stereo
2 x 1/4" / 6.3 mm Stereo
1 x 1/4" / 6.3 mm Headphone

Bus

1 x Stereo

Pad

26 dB (Mono Channels)

HPF

80 Hz, 12 dB/Oct (Mono Channels)

Equalizer

EQ High (Mono Channels) Gain: ±15 dB, Frequency: 10 kHz Shelving

EQ Low (Mono Channels) Gain: ±15 dB, Frequency: 100 Hz Shelving

LED

LED Turns On When Post EQ Signal Reaches 3 dB Below Clipping

Level Metering

2 x 7-Segment LED Meter (Peak, +6, +3, 0, -3, -10, -20 dB)

Total Harmonic Distortion

0.01% @ +8 dBu (20 Hz to 20 kHz), Gain Knob: Min, 0.003% @ +18 dBu (1 kHz), Gain Knob: Min

Frequency Response

20 Hz to 20 kHz ±0.5 dB, Refer to the Nominal Output Level @ 1 kHz, Gain Knob: Min

Equivalent Input Noise

-128 dBu (Mono Input Channel, Rs: 150 Ohms, Gain Knob: Max)

Residual Output Noise

-102 dBu (Stereo Out, Stereo Level Knob: Min)

Crosstalk

-88 dB

Power Requirement

PA-130 (12 VDC / 1 A), 120 VAC, 60 Hz
MU18 (12 VDC / 1.5 A), 100-240 VAC, 50/60 Hz
Or Equivalent Recommended by Yamaha

Power Consumption

12 W

Dimensions

5.9 x 2.4 x 7.9" / 149 x 62 x 202 mm

Net Weight

1.98 lb / 0.9 kg

Package Weight

3.27 lb

Box Dimensions (LxWxH)

10.7 x 9.75 x 4.75"
