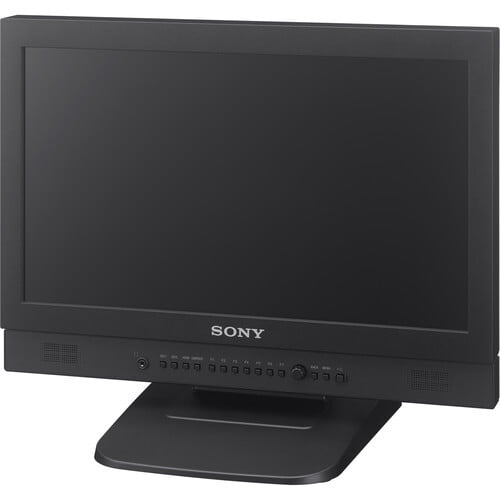

Sony LMD-B170 17" Full HD LCD Monitor

Panel Type

TFT LCD

Display Size

17.2" / 43.8 cm

Active Area

15.04 x 8.46" / 381.9 x 214.8 mm

Screen Resolution

1920 x 1080

Aspect Ratio

16:9

Viewing Angle

Horizontal: 160° (80/80)
Vertical: 140° (80/60)

Image Controls

Color Temperature Selection, Focus Peaking, Image Flip, Screen Markers, Vectorscope, Waveform

Video

2 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x BNC (3G-SDI) Output
1 x BNC (Composite) Output

Audio

1 x 3.5 mm Input
1 x 3.5 mm Monitor Output
1 x 3.5 mm Headphone Output

Built-In Speaker

2 x 2 W

Power

1 x 4-Pin XLR Input

Other I/O

1 x Parallel (8P8C)
1 x Parallel (RJ45)

Card Slot

None

AC Input Power

100 to 240 VAC, 50 / 60 Hz at 0.5 to 0.4 A

DC Input Power

12 to 17 VDC

Battery Type

None

Power Consumption

49 W (Maximum)
42 W (Typical)

Mounting-Hole Pattern

100 x 100 mm

Operating Humidity

30 to 85%

Operating Temperature

32 to 95°F / 0 to 35°C
32 to 95°F / 0 to 35°C
68 to 86°F / 20 to 30°C (Recommended)

Storage Humidity

0 to 90%

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions (W x H x D)

16.66 x 11.96 x 2.68" / 423.2 x 303.8 x 68 mm
16.66 x 13.64 x 10.41" / 423.2 x 346.5 x 264.4 mm, Including Feet

Weight

13.01 lb / 5.9 kg, Including Stand
9.04 lb / 4.1 kg

Package Weight

16.4 lb

Box Dimensions (LxWxH)

20 x 18.5 x 14"
