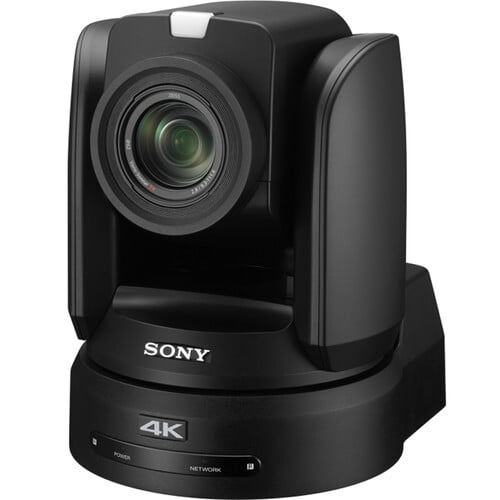

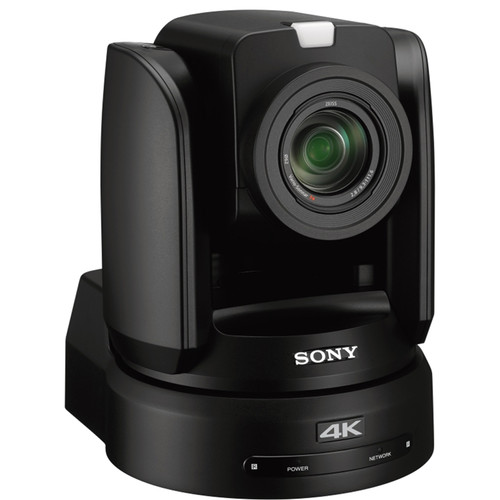

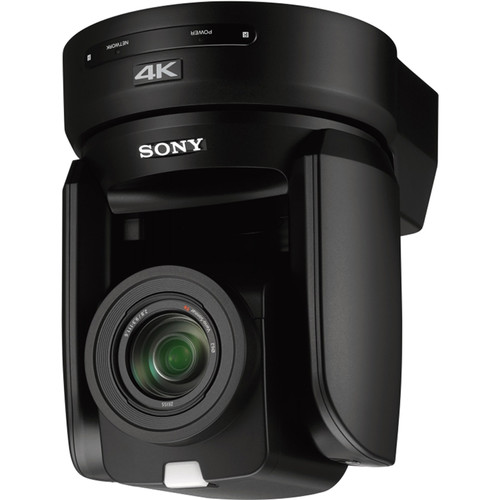

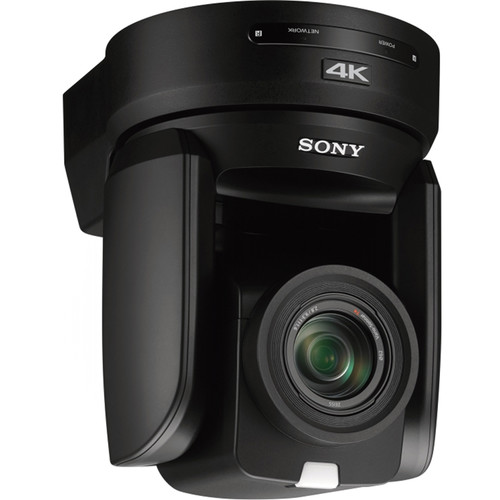

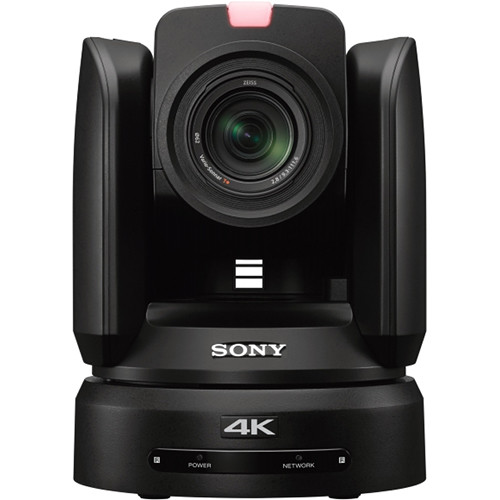

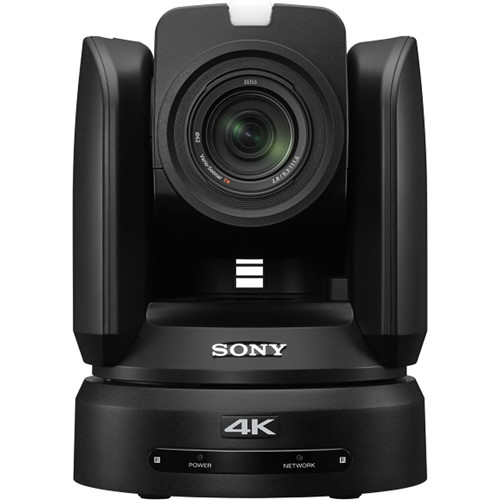

Sony BRC-X1000 4K PTZ Camera with 1" CMOS Sensor and PoE+ (Black)
Smoothly capture UHD 4K video even in low-light settings with the black BRC-X1000 4K PTZ Camera from Sony. This compact camera features a 1" type Exmor CMOS image sensor, a 12x Zeiss optical zoom, and PoE+ support.
Specification
Image Sensor
Image Sensor | 1-Chip 1" CMOS Sensor |
Horizontal Resolution (TV Lines) | 1800 TV Lines |
Sensor Resolution | 20.4 MP |
Effective Sensor Resolution | 14.2 MP |
Gain | -3 to 33 dB |
Minimum Illumination | 1.7 Lux at 1/30 Shutter Speed |
Camera
Shutter Speed | 1/10000 to 1/8 sec |
Max Digital Zoom | 48x |
Flip / Mirror Support | Image Flip |
Lens
Optical Zoom Ratio | 12x |
Focal Length | 9.3 to 111.6mm |
35mm Equivalent Focal Length | 29 to 348mm |
Field of View | Horizontal: 64.6° |
Maximum Aperture | f/2.8 to 4.5 |
Minimum Focusing Distance | Wide: 3.1" / 8.0 cm |
Focus Control | Autofocus |
Video Output
Broadcast System Compatibility | NTSC, PAL |
Output Formats | SDI, HDMI: 3840 x 2160p at 23.98, 25, 29.97 fps |
Control
Presets | 100 |
Move Speed | Pan: 0.03 to 60°/sec |
Movement Range | Pan: 340° (-170 to 170°) |
Supported Control Protocols | IP |

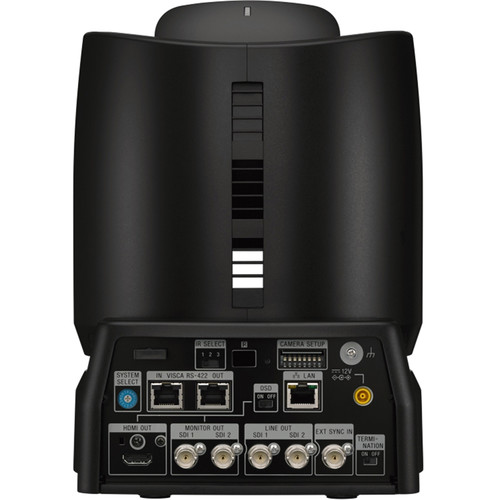

Interfaces
Video Output Connectors | 2 x BNC (3G-SDI) |
Control Interface | 2 x RJ45 (RS-422, VISCA) |
Other I/O | 1 x BNC (Sync) Input |
Power
PoE Support | PoE+ 802.3at |
Power Connectors | 1 x JEITA (10.8 to 13.2 VDC) |
Power Consumption | Power Supply: 21.5 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Tripod Mounting Thread | 2 x 1/4"-20 Female |
Certifications | TAA, as per Manufacturer |
Dimensions | 10.24 x 9.37 x 7.8" / 260 x 238 x 198 mm (Without Protrusions) |
Weight | 9.48 lb / 4.3 kg |
Packaging Info
Package Weight | 16.8 lb |
Box Dimensions (LxWxH) | 22 x 18.5 x 16.5" |
