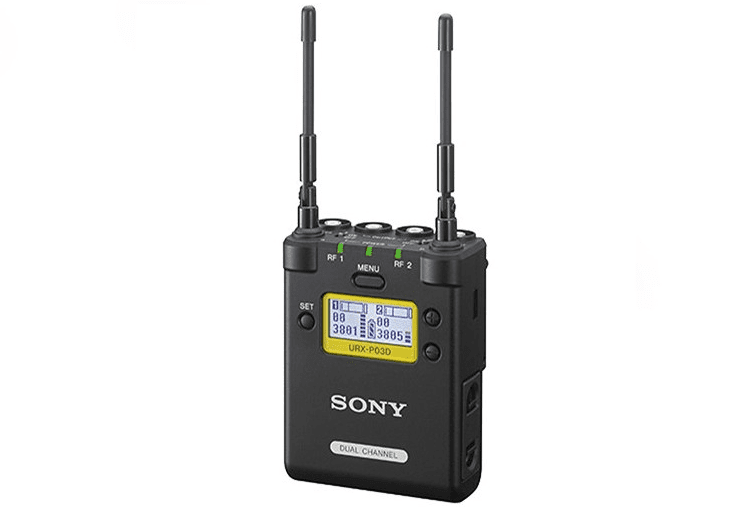

Sony URX-P03D/K21 Two-Channel Portable Receiver for UWP-D Systems
Non-returnable
$984.62
Tags:
The URX-P03D 2-channel portable receiver forms part of a complete UWP-D audio system offering the sound quality of digital audio processing combined with the reliability of analogue FM modulation.
Product Details
SPECIFICATION
URX-P03D Portable Receiver
Oscillator Type
Crystal-controlled PLL Synthesizer
Reception Type
Space diversity*
Antenna Type
1/4 wave length wire
Carrier Frequencies: Americas
14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51) (not available in US or Canada)
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51) (not available in US or Canada)
Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand
CE21: 470.025 MHz to 542.000 (not available in Australia, Malaysia, Vietnam or New Zealand)
CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
CE42: 638.025 MHz to 694.000 MHz
CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
CE42: 638.025 MHz to 694.000 MHz
Carrier Frequencies: China
CN38: 710.025 MHz to 782.000 MHz
Carrier Frequencies: Thailand, Taiwan, Singapore
E: 794.125 MHz to 805.875 MHz
Carrier Frequencies: Japan
JB: 806.125 MHz to 809.750 MHz
Carrier Frequencies: South Korea
KR3: 925.125 MHz to 937.500 MHz
Frequency Response
23Hz to 18kHz (typical)
Signal-to-Noise Ratio
96dB (max deviation, A-weighted)
Distortion (T.H.D)
0.9% or less (-60dBV, 1kHz input)
Audio Delay
Approx. 0.375 msec
Analog Input
3-pole mini jack, unbalanced
Analog Input Level
-50dBV (±12dB Adjustable, 3-dB step)
Analog Output
3-pole mini jack, unbalanced
Analog Output Level
-60dBV (at ±5kHz deviation)
Analog Output Adjust Range
-12dB - +12dB (3dB step)
Headphone Output
φ3.5 mm ( 5/32 inch) stereo mini jack
Headphone Output Level
5 mW (at 16-ohm load)
Pilot Tone Signal
32 kHz/ 32.382 kHz/ 32.768 kHz
Display
LCD
Power Requirements
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
DC 5.0V (via USB micro-B)
DC 5.0V (via USB micro-B)
Battery Operating Time
Approx. 4.5 hours with AA-size alkaline (LR6) batteries at 25ºC (77ºF)
Operating Temperature
0°C to 50°C
32°F to 122°F
32°F to 122°F
Storage/Transport Temperature
-20°C to +55°C
-4°F to +131°F
-4°F to +131°F
Dimensions
63 x 82 x 28.4 mm (excluding the anntenas) (W x H x D)
Mass
Approx. 210 g (including batteries)
