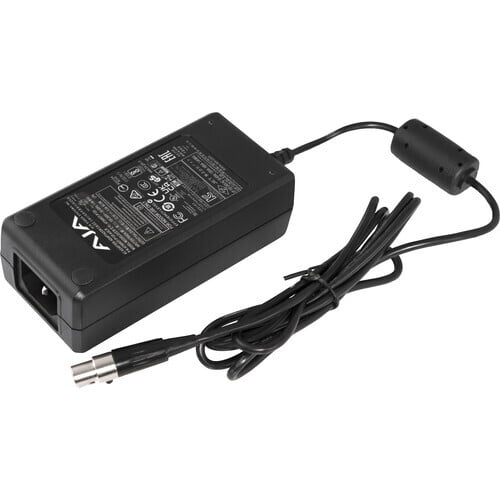

AJA-PWR-12-60W AJA-PWR-12-60W Power Supply for HELO Plus and ColorBox by AJA

HDR/WCG Real Time Processor

• HDR Conversions
  • HDR to HDR
  • HDR to SDR
  • SDR to HDR
• Colorimetry
  • BT.709 and BT.2020

Video Formats

• (4K) 4096x2160p
• (UltraHD) 3840x2160p
• (2K) 2048x1080p
• (HD) 1920x1080p
• (HD) 1920x1080i
• (HD) 1280x720p

Color Processing Pipeline

• Processes in 12-bit RGB
• 5x pipelines; AJA Color, Colorfront, ORION-CONVERT, BBC HLG LUTs, NBCU LUTs
• 7x processing nodes plus Overlay in AJA Color; 4x 1D LUTs, 2x 3x3 Matrices, 1x 3D LUT

AJA Color Pipeline (ACP)

• 7x nodes in order of processing:
  • 1D LUT, 3x3 Matrix, 1D LUT, 3D LUT, 1D LUT, 3x3 Matrix, 1D LUT, Overlay
• 3D LUT configurable as LUT or Dynamic
  • Supports custom 33 point .CUBE, .SPI3D, and .3DL format 3D LUTs*
• 1D LUTs configurable as LUT, Dynamic, or Color Corrector
  • Supports custom 10 and 12-bit .CUBE and .SPI1D format 1D LUTs
• 3x3 Matrices configurable as Matrix, Dynamic, or Proc Amp
  • Supports custom .SPIMTX format matrices
• Tetrahedral 3D LUT interpolation
• Configurable Color Space, Range, and Transfer Characteristic
• Nonvolatile storage of 16x 3D LUTs, 16x 1D LUTs, and 16x 3x3 Matrices
• Overlay

*Various 3D LUT sizes are supported, but will be converted to 33 point for processing

Dynamic LUT Processing

• Supports third party apps for automatic loading and display of 3D LUTs
• Reflects dynamic changes in real time from source software
• Full frame LUT processing
• Supported by
  • Pomfort Livegrade Pro and Studio
  • Assimilate Live Looks and Live Assist

Colorfront Pipeline

• Processing Based on Human Perception Model
• Perceptually optimized color volume remapping
• Preserves the original creative intent
• TV Mode for applications such as television broadcast
• Live Mode for applications such as broadcast, OTT, A/V
• Input Video Dynamic Range/Color Gamut (varies by mode)
  • SDR BT.709 100 Nits
  • SDR Extended BT.709
  • PQ BT.2020 1000 Nits
  • PQ P3D65 1000 Nits
  • Hybrid Log Gamma BT.2100
  • HLG Extended BT.709
  • HLG Extended BT.2100
  • Sony S-Log3 S-Gamut3
  • Sony S-Log3 S-Gamut3 Cine
  • Sony S-Log3 BT.2020
  • ARRI Log C Wide Gamut
  • ARRI LogC4 Wide Gamut 4
  • Panasonic V-log
  • RED Log3G10 Wide Gamut
  • Canon Log 2
  • Canon Log 3
• Output Video Dynamic Range/Color Gamut (varies by mode)
  • SDR BT.709 100 Nits
  • SDR Extended BT.709
  • PQ BT.2020 1000 Nits
  • PQ BT.2020 ConstrainP3
  • PQ P3D65 1000 Nits
  • Hybrid Log Gamma BT.2100
  • HLG Extended BT.709
  • HLG Extended BT.2100
  • Sony S-Log3 S-Gamut3
  • Sony S-Log3 BT.2020
  • ARRI Log C Wide Gamut
  • ARRI LogC4 Wide Gamut 4
• TV Mode controls
  • Highlight management: Brightness, Highlight, Super Highlight
  • Colorfulness control for managing the Hunt Effect
  • Color Correction: Lift, Gamma, Gain, Saturation
  • Camera Correction: Exposure, Color Temp, Tint
  • Roundtrip control ensures technical match
  • Clamp to Legal
• Live Mode controls
  • HDR Amount
  • Ambient Light Compensation control
  • HDR Log Look
  • SDR Softness control
  • Color Correction: Lift, Gamma, Gain, Saturation
  • Camera Correction: Exposure, Color Temp, Tint
  • PQ Output Nit level: 48-4000 Nit
  • PQ Output P3 Colorspace Clamp
  • ITU-R BT.2408 Mode control
• Overlay

ORION-CONVERT Pipeline

• Conversion algorithm that uses floating point math
• Pre and post transform Knee and Amount controls
• Display-Light and Scene-Light Modes
• Configurable HDR and SDR IRE Reference anchor points
• Configurable HDR Peak Nits sets system gamma for display light conversions
• Gamma Compensation
• Configurable Output Clamping
• Input Video Dynamic Range/Color Gamut
  • SDR BT.709
  • PQ BT.2020
  • HLG BT.2100
• Output Video Dynamic Range/Color Gamut
  • SDR BT.709
  • PQ BT.2020
  • HLG BT.2100
• Overlay

BBC HLG LUTs Pipeline

• Mathematical dynamic range mapping per ITU-R BT.2408
  • SDR/BT.709 Scene Referred to HLG/BT.2100 v1.6
  • SDR/BT.709 Scene Referred to HLG/BT.2100 Strict v1.6
  • SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 v1.6
  • SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 Strict v1.6
  • SDR/BT.709 Display Referred to HLG/BT.2100 v.1.6
  • SDR/BT.709 Display Referred UpMap to HLG/BT.2100 v1.6
  • SDR/BT.2020 Display Referred to HLG/BT.2100 v1.6
  • SDR/BT.2020 Display Referred UpMap to HLG/BT.2100 v1.6
  • PQ 1000 Nits Display Referred to HLG/BT.2100 v1.6
  • PQ 4000 Nits Display Referred to HLG/BT.2100 v1.6
  • S-Log3/BT.2020 100% Scene Referred to HLG/BT.2100 v1.6
  • S-Log3/BT.2020 200% Scene Referred(SR-Live) to HLG/BT.2100 v1.6
  • HLG/BT.2100 to SDR/BT.709 Scene Referred v1.6
  • HLG/BT.2100 to SDR/BT.709 Scene Referred Strict v1.6
  • HLG/BT.2100 to SDR/BT.709 Display Referred Color Appearance Model v1.6
  • HLG/BT.2100 to SDR/BT.709 Display Referred Super White v1.6
  • HLG/BT.2100 to PQ 1000 Nits Display Referred v1.6
  • HLG/BT.2100 to SDR/BT.2020 Display Referred Super White v1.6
  • SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 to SDR/BT.709 Display Referred v1.6
• RGB Color Corrector and ProcAmp
• Overlay

NBCU LUTs Pipeline

• NBCU LUTs developed by NBCUniversal Media, LLC
  • 1-NBCU_SDR2HLG_DL_v1.1, SDR UpMap to HLG using Display Light v1.1
  • 2-NBCU_SDR2HLG_SL_v1, SDR to HLG using Scene Light v1.0
  • 3-NBCU_HLG2SDR_DL_v1.1, HLG to SDR using Display Light v1.1
  • 4-NBCU_SDR2PQ_DL_v1, SDR UpMap to PQ using Display Light v1.0
  • 5-NBCU_PQ2SDR_DL_v1, PQ to SDR using Display Light v1.0
  • 7-NBCU_HLG10002PQ_v1, HLG 1000 Nits to PQ v1.0
• RGB Color Corrector and ProcAmp
• Overlay

Video Input and Output SDI

• 1x 12G-SDI Input BNC, SMPTE-292/424/2081/2082
• 2x 12G-SDI Output BNCs, SMPTE-292/424/2081/2082
• YCbCr 4:2:2/4:4:4
• RGB 4:4:4, SMPTE or Full level
• 10 or 12-bit
• 1x 12G-SDI
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1x 6G-SDI
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
• 1x 3G-SDI (Level A or B-Dual Link)
  • (2K) 2048x1080p 23.98, 24, 25, 47.95, 48, 50
  • (2K) 2048x1080PsF 23.98, 24, 25
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
• 1x 1.5G-SDI
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048x1080PsF 23.98, 24, 25
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60

Note: Raster and Frame Rate Dependent, please see ColorBox Video Formats in Documents and Manual

Video Output HDMI

• 1x HDMI Type A connector*, HDMI v2.0b
• HDR infoframe generation with pass-through for Colorimetry and Transfer Characteristic
• YCbCr 4:2:2
• RGB 4:4:4, SMPTE or Full level
• 8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
• 4K/UltraHD/2K/HD

*If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
Note: Raster and Frame Rate Dependent, please see ColorBox Video Formats in Documents and Manual

Video Processing

• Nominal video delay is less than 1/2 video line
• Motion adaptive deinterlacer
• Proc Amp controls
• Color corrector
• Legalizer

Frame Store

• Capture and Recall up to 4K/UltraHD 16-bit .TIFF
• Capture and Recall .TIFF, .PNG, .JPEG
• Capture input or output
• Nonvolatile storage of 16 images

Test Pattern Generator

• 10 or 12-bit
• 14x patterns built-in
• SDR and HDR test patterns

Ancillary Data

• All embedded ANC packets pass-through, including camera ancillary data

Overlay

• User Text
• Input and Output ancillary information, including VPID
• Timecode presence
• Closed Captioning presence
• Pipeline Configuration
• User Overlay, Recall .PNG overlay images up to 4096x2160
• Nonvolatile storage of 16 overlays

Audio Input Digital

• SDI embedded audio, 24-bit, 16-channel

Audio Output Digital

• SDI embedded audio, 24-bit, 16-channel
• HDMI embedded audio, 24-bit, 8-channel

Network Interface

• 1x RJ-45, 10/100/1000 Ethernet
• Embedded web server for remote control
• REST Interface
• WiFi control available via 3rd party WiFi USB adapter*

*Linksys AC1200 WUSB6300 and Netgear AC1900 A7000

USB Interface

• 1x Mini-USB for IP configuration using AJA eMini-Setup

Presets

• 10 Pipeline Presets per mode (AJA Color, Colorfront, ORION-CONVERT, BBC HLG LUTs, NBCU LUTs)
• Startup Preset

Size (w x d x h)

• 4.10" x 7.54" x 1.66" (104.1 x 191.6 x 42.1 mm)

Weight

• 1.0 lb (0.5 kg)

Power

• External power supply required
• Enclosure: 10-18VDC regulated, 4-pin mini-XLR, 16W typical 3G-SDI, 21W typical 12G-SDI, 25W max.
• AC Adapter, included: 100-240VAC, 50/60 Hz, universal input, 60W
• Optional spare AC adapter sold separately, AJA-PWR-12-60W

Environment

• Safe Operating Temperature: 0 to 50 C (32 to 122 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
