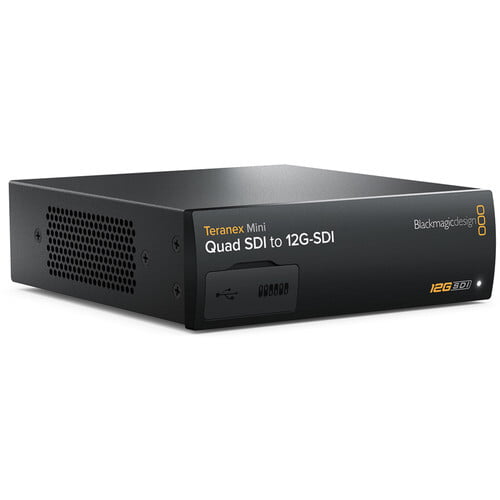

Blackmagic Design Teranex Mini Quad SDI to 12G- SDI Converter

Video Input Connectors

1 x BNC Female

Input Video Format

SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
PAL: 50 fps
NTSC: 59.94 fps

Audio Input Connectors

None

Embedded Audio Input

SDI: 16-Channel

Video Output Connectors

4 x BNC (3G-SDI / HD-SDI / SD-SDI) Female
1 x BNC (12G-SDI) Female (Loop Output)

Output Video Format

SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
PAL: 50 fps
NTSC: 59.94 fps

Audio Output Connectors

None

Embedded Audio Output

SDI: 16-Channel

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

Other I/O

1 x RJ45 LAN, PoE Input/Output
1 x USB Type-A Firmware Input

Expansion Slots

None

Power Connector

1 x IEC C14 Input

PoE Support

PoE+ 802.3at

Power Consumption

Device: 90 to 240 VAC (16 W)

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%

Dimensions

6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm

Weight

1.28 lb / 581 g

Warranty Length

Limited 3-Year Warranty
