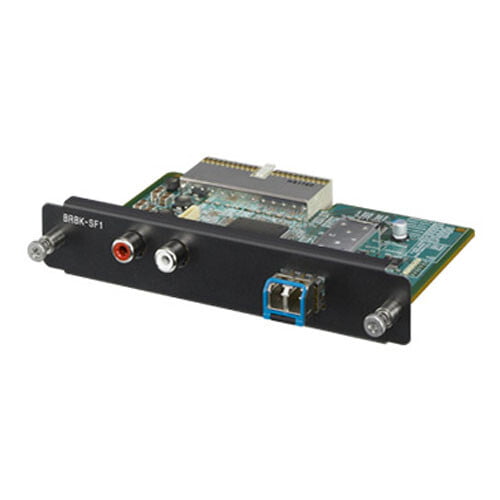

Sony Optional HD Optical Multiplex Card for BRC-Z330 Camera
Non-returnable
$2,000.00
Tags:
The Sony Optional HD Optical Multiplex Card for BRC-Z330 Camera works with single mode optical fiber that extends the HD signal up to 656’ (200 m) and supports LC duplex fiber connector. It accepts audio inputs from 2 phono jack audio input lines and has a maximum input level of 2.8 Vrms.
Product Details
Specification
Power | 2.9W maximum |
Power Supply Voltage | DC12V (BRC-Z330 supplied) |
Audio Line In | Pin jack L / R × 1 each |
Laser unit | 1,310 nm SFP Transceiver Single-mode SFP MSA compliant |
Fiber Optic Terminal | Fiber Optic Terminal Connector × 1 |
Operating Humidity | 20-80% (no condensation) |
Storage Humidity | 20-95% |
Mass | 0.29 lb (Approximately 130 g) |
Packaging Info
Package Weight | 0.7 lb |
Box Dimensions (LxWxH) | 9.5 x 9 x 2" |
