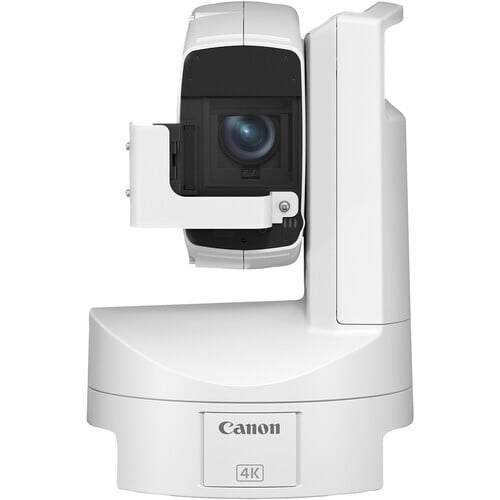

Canon CR-X300 Outdoor 4K PTZ Camera with 20x Zoom (Titanium White)
$9,415.00
Tags:
The CR-X300 features a 1 / 2.3-inch 4k-UHD CMOS imaging sensor and an optical 20x zoom lens, along with the a 20x digital zoom, all supported by Canon's highly advanced autofocus technology.
Product Details
SPECIFICATION
Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Total pixels: approx. 21.14 megapixels
Effective pixels: approx. 8.29 megapixels (3840 x 2160)
f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom 35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) – 601 mm (T)
[Full HD] approx. 30.5 (W) – 627 mm (T)
8-bladed circular aperture
12 elements in 10 groups (including 2 aspheric elements)
Optical: 20x
Digital: 20x
1 cm (0.39 in.) at maximum wide angle, 60 cm (2.0 ft.) throughout the zoom range (from the front window)
[4K UHD]
Horizontal: 65.6° (W) – 3.6° (T)
Vertical: 39.8° (W) – 2.0° (T)
[Full HD]
Horizontal: 63.5° (W) – 3.4° (T)
Vertical: 38.4° (W) – 1.9° (T)
1/6 – 1/2000 sec. (specific values depend on the frame frequency)
Focus mode: Manual, Continuous AF, Face Detection AF, Tracking AF type: Hybrid AF, Contrast AF
F.Auto, P, Tv, Av, M
Normal1, Normal3
Auto, Manual 1/3 – 1/1000 sec.
BT.709, BT.2020
ND filter: 1/8 at maximum
Enhanced ND filter: 1/32
Electrically switchable
Optical-shift (Standard IS, Powered IS)
AUTO (AWB), Set A, Set B, preset settings (daylight: approx. 5600 K*, tungsten lamp: approx. 3200 K*), color temperature setting (2000 K – 15000 K), Manual
* Color temperatures are given for reference purposes only.
0.0 dB – 36.0 dB
Approx. 3.0 lux (shutter speed 1/60 sec., frame frequency 59.94 Hz (P (Program AE) shooting mode), auto slow shutter "Off")
Supports upright/ceiling installation, flip function ("Auto Flip" enabled/disabled)
Equipped
Waterproof microphone
Image Sensor
Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Total pixels: approx. 21.14 megapixels
Effective pixels: approx. 8.29 megapixels (3840 x 2160)
Lens
f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom 35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) – 601 mm (T)
[Full HD] approx. 30.5 (W) – 627 mm (T)
8-bladed circular aperture
12 elements in 10 groups (including 2 aspheric elements)
Zoom
Optical: 20x
Digital: 20x
Minimum Focusing Distance
1 cm (0.39 in.) at maximum wide angle, 60 cm (2.0 ft.) throughout the zoom range (from the front window)
Angle of View
[4K UHD]
Horizontal: 65.6° (W) – 3.6° (T)
Vertical: 39.8° (W) – 2.0° (T)
[Full HD]
Horizontal: 63.5° (W) – 3.4° (T)
Vertical: 38.4° (W) – 1.9° (T)
Shutter Speed
1/6 – 1/2000 sec. (specific values depend on the frame frequency)
Focus
Focus mode: Manual, Continuous AF, Face Detection AF, Tracking AF type: Hybrid AF, Contrast AF
Shooting Mode
F.Auto, P, Tv, Av, M
Scene Mode
Portrait, Sports, Low light, Spotlight
Gamma
Normal1, Normal3
Color Space
Auto, Manual 1/3 – 1/1000 sec.
Color Matrix
BT.709, BT.2020
ND Filter
ND filter: 1/8 at maximum
Enhanced ND filter: 1/32
IR Mode
Electrically switchable
Image Stabilizer
Optical-shift (Standard IS, Powered IS)
White Balance
AUTO (AWB), Set A, Set B, preset settings (daylight: approx. 5600 K*, tungsten lamp: approx. 3200 K*), color temperature setting (2000 K – 15000 K), Manual
* Color temperatures are given for reference purposes only.
Gain
0.0 dB – 36.0 dB
Min. Subject Illumination
Approx. 3.0 lux (shutter speed 1/60 sec., frame frequency 59.94 Hz (P (Program AE) shooting mode), auto slow shutter "Off")
Video Flip
Supports upright/ceiling installation, flip function ("Auto Flip" enabled/disabled)
Built-in Microphone
Equipped
Waterproof microphone
