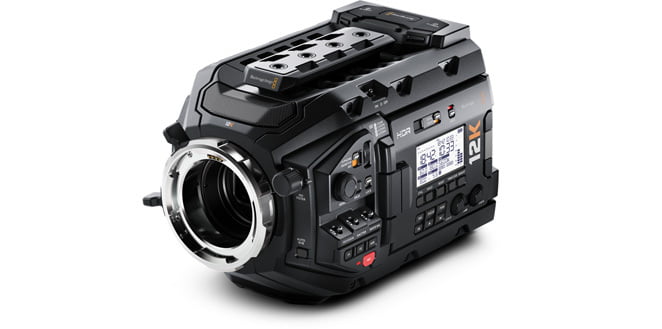

Blackmagic Design URSA Mini Pro 12K

Lens Mount

ARRI PL

Interchangeable Lens Mount

Yes

Lens Communication

Yes

Sensor Resolution

Effective: 79.6 Megapixel (12,288 x 6480)

Sensor Type

27.03 x 14.25 mm (Super35) CMOS

Built-In ND Filter

Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

ISO Sensitivity

800 (Native)

Shutter Type

Rolling Shutter

Advertised Dynamic Range

14 Stops

Raw Recording

Raw 12-Bit:
12288 x 6480 at 23.98/24/25/29.97/30/50/59.94/60 fps (72 to 578 MB/s)
11520 x 648 at 23.98/24/25/29.97/30/50/59.94/60 fps
12288 x 5112 at 23.98/24/25/29.97/30/50/59.94/60 fps
7680 x 6408 at 23.98/24/25/29.97/30/50/59.94/60 fps
8192 x 4320 at 23.98/24/25/29.97/30/50/59.94/60 fps (32 to 258 MB/s)
7680 x 4320 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
8192 x 3408 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
5120 x 4272 at 23.98/24/25/29.97/30/50/59.94/60/120 fps
6144 x 3240 at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18 to 145 MB/s)
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (8 to 65 MB/s)
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
4096 x 1704 at 23.98/24/25/29.97/30/59.94/60 fps
2560 x 2136 at 23.98/24/25/29.97/30/50/59.94/60 fps

Recording Modes

Not Specified by Manufacturer

Variable Frame Rates

12K: Up to 60 fps
12K Anamorphic: Up to 75 fps
8K: Up to 120 fps
DCI 4K: Up to 120 fps
8K Anamorphic: Up to 160 fps
4K Anamorphic: Up to 160 fps
6K (Windowed): Up to 120 fps
DCI 4K (Windowed): Up to 240 fps

Audio Recording

2-Channel 24-Bit 48 kHz

Still Image Support

Raw

Raw Output

USB:
12 x 6480
8192 x 4320
6144 x 3240
4096 x 2160

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-II)

Video Connectors

1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
1 x BNC (3G-SDI) Monitor Output

Audio Connectors

2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Output
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Input/Output

Built-In Microphone Type

Stereo

Other I/O

1 x USB Type-C USB 3.1 Gen 2
1 x USB Type-C Data Input

Size

4.0"

Display Type

Articulating Touchscreen LCD

Secondary Display

Side: Status Display

EVF

Optional, Not Included

Power Connectors

1 x 4-Pin XLR Input
1 x 12-Pin Molex Input/Output
1 x 4-Pin XLR (12 VDC) Output

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Accessory Mount

4 x 1/4"-20 Female
1 x ARRI/Hirth Rosette

Dimensions

9.2 x 5.92 x 5.87" / 23.37 x 15.04 x 14.91 cm

Weight

5.62 lb / 2.55 kg
