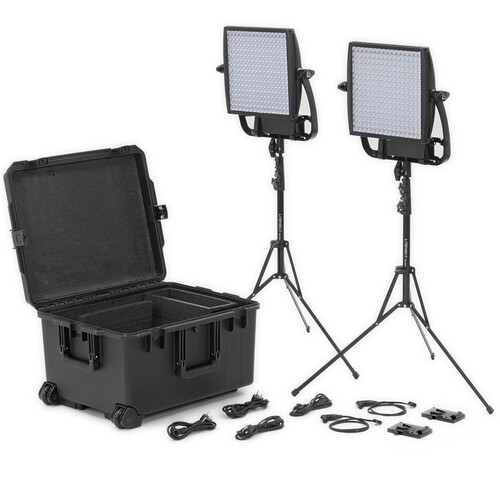

Litepanels Astra 6X Bi-Color LED Panel + Astra Soft Bi-Color LED Panel Traveler Duo Gold Mount Kit
Litepanels Astra Soft Bi-Color is like having a softbox built into the slim Litepanels Astra profile. The diffusion is designed to all but eliminate the multi-source shadow effect and lend a soft wraparound aesthetic to your subject while covering a larger, less concentrated area of illumination.
Specification
Light Fixture
Beam Angle | 94° |
Color Temperature | 3200 to 5600K |
Color Accuracy Standard | CRI 95 |
Cooling System | Fan/Passive Combo |
Dimming | Yes, 0 to 100% (Continuous) |
Display | None |
Housing Material | Aluminum |
Photometrics | 94° at 3200K: |
Fixture Dimensions | 17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.5 cm |
Fixture Weight | 7.1 lb / 3.22 kg |
Connectors
Power Input Connector | 3-Pin XLR |
Mounting
Yoke Mount | TVMP/ Hex Bolt |
Fixture Mount | 5/8" Receiver |
Yoke
Yoke Type | Yoke/Bracket |
Power
AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
AC Input Power | VAC50 / 60 Hz |
DC Input Power | 24 VDC |
Power Source | AC Adapter, External Battery |
Max Power Consumption | 105 W |
Power Pass-Thru | No |
Internal Battery
Physical
IP Rating | IP20 |
Packaging Info
Package Weight | 11.5 lb |
Box Dimensions (LxWxH) | 21.5 x 20.5 x 6" |

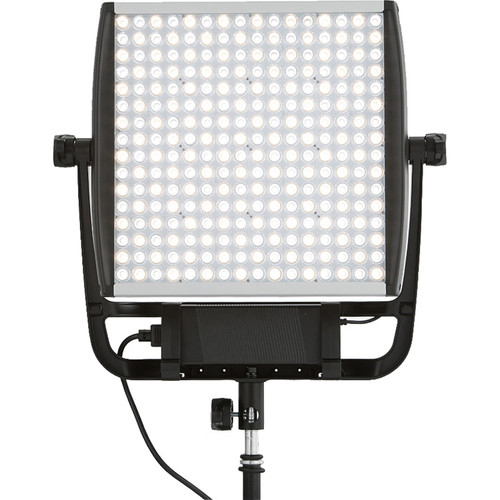

Litepanels Astra 6X Bi-Color LED Panel Specs
Light Fixture
Beam Angle | 46° |
Color Temperature | 3200 to 5600K |
Color Accuracy Standard | CRI 95 at 3200K |
Cooling System | Fan/Passive Combo |
Dimming | Yes, 0 to 100% |
Display | None |
Housing Material | Aluminum |
Photometrics | 46° at 3200K: |
Fixture Dimensions | 17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.4 cm |
Fixture Weight | 7.0 lb / 3.2 kg |
Connectors
Power Input Connector | 3-Pin XLR |
Mounting
Yoke Mount | TVMP/ Hex Bolt |
Fixture Mount | 5/8" Receiver |
Accessory Mount | None |
Remote Operation
Remote Control Type | Bluetooth, DMX |
Power
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 24 VDC |
Power Source | AC Adapter, External Battery |
Max Power Consumption | 105 W |
Power Pass-Thru | No |
Physical
IP Rating | IP20 |
Packaging Info
Package Weight | 11.9 lb |
Box Dimensions (LxWxH) | 21.4 x 20.3 x 6" |
Litepanels Nano Light Stand (6.2') Specs
Minimum Height | 19.3" (49 cm) |
Maximum Height | 6.2' (1.9 m) |
Closed Length | ~19" (48.3 cm) |
Footprint Diameter | 3.3' (1 m) |
Weight | ~2 lbs (0.93 kg) |
Maximum Load | 3.3 lbs (1.5 kg) |
Attachment Size | 5/8" stud with 3/8" threaded top, 1/4"-20 threaded adapter |
Accepts Wheels | No |
Air Cushioned | No |
Packaging Info
Box Dimensions (LxWxH) | 20.2 x 4.4 x 4.6" |
Litepanels Battery Plate For Astra 1x1 LED Panel (Gold Mount) Specs
General
Mount | Gold Mount |
Packaging Info
Package Weight | 0.49 lb |
Box Dimensions (LxWxH) | 15 x 6.25 x 3.05" |
Litepanels Traveler Case Duo With Custom Foam For 1 Astra Soft And 1 Astra (Black) Specs
Interior
Interior Dimensions | 22 x 17 x 12.7" / 55.9 x 43.2 x 32.6 cm |
Padding | Foam |
Exterior
Closure Type | Latch, Hasp |
Carry and Transport Options | 3 x Handle |
Material of Construction | Resin |
Lid Depth | 2" / 5.1 cm |
Exterior Dimensions (W x H x D) | 24.6 x 19.7 x 14.4" / 62.5 x 50.0 x 36.6 cm |
Weight | 20 lb / 9.1 kg |
Packaging Info
Package Weight | 23.6 lb |
Box Dimensions (LxWxH) | 24.5 x 19.5 x 14.5" |
