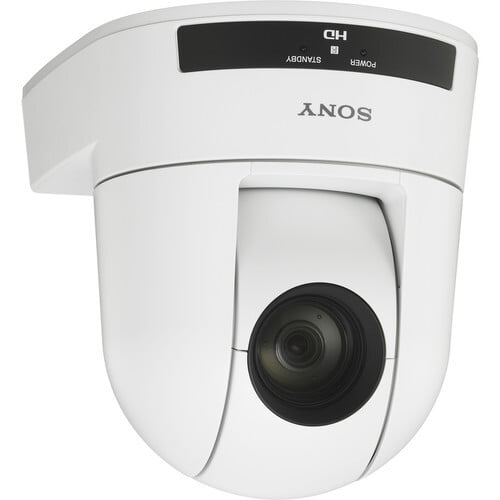

Sony SRG-300HW 1080p Desktop & Ceiling Mount Remote PTZ Camera with 30x Optical Zoom (White)
Sony SRG-300HW 1080p Desktop & Ceiling Mount Remote PTZ Camera, is suitable for medium to large venues such as lecture halls, auditoriums, houses of worship, and stadiums. The unit consists of a pan/tilt module and camera head and lens.
Specification
Image Sensor
Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
Sensor Resolution | 2.1 MP |
Gain | 0 to 43 dB |
Signal-to-Noise Ratio | 50 dB |
Minimum Illumination | 1.4 Lux |
Camera
Shutter Speed | 1/1 to 1/10,000 sec |
Max Digital Zoom | 12x ( in 1080p) |
Built-In Speaker | No |
Flip / Mirror Support | Image Flip |
Lens
Optical Zoom Ratio | 30x |
Focal Length | 4.3 to 129mm |
Maximum Aperture | f/1.6 to 4.7 |
Minimum Focusing Distance | Wide: 0.4" / 1.0 cm |
Video Output
Broadcast System Compatibility | NTSC, PAL |
Output Formats | HDMI: 1920 x 1080p at 29.97, 50, 59.94 fps |
Embedded Audio | HDMI |
Control
Move Speed | Pan: 0 to 100°/sec |
Movement Range | Pan: 340° (-170 to 170°) |
Supported Control Protocols | RS-232 |
Interfaces
Video Output Connectors | 1 x HDMI Type A |
Control Interface | 1 x 9-Pin Terminal Block (RS-422, VISCA) |
Other I/O | 1 x RJ45 (LAN) Input/Output |
Power
Power Connectors | 1 x JEITA (14 VDC) |
Power Consumption | Device: 10.8 to 13.2 VDC16.8 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Tripod Mounting Thread | 1 x 1/4"-20 Female |
Dimensions | 6.46 x 6.42 x 6.18" / 164 x 163 x 157 mm |
Weight | 3.09 lb / 1.4 kg |
Packaging Info
Package Weight | 6 lb |
Box Dimensions (LxWxH) | 12.45 x 11.15 x 9.45" |
