RED V-RAPTOR EXPANDER BLADE
$673.02
Tags:

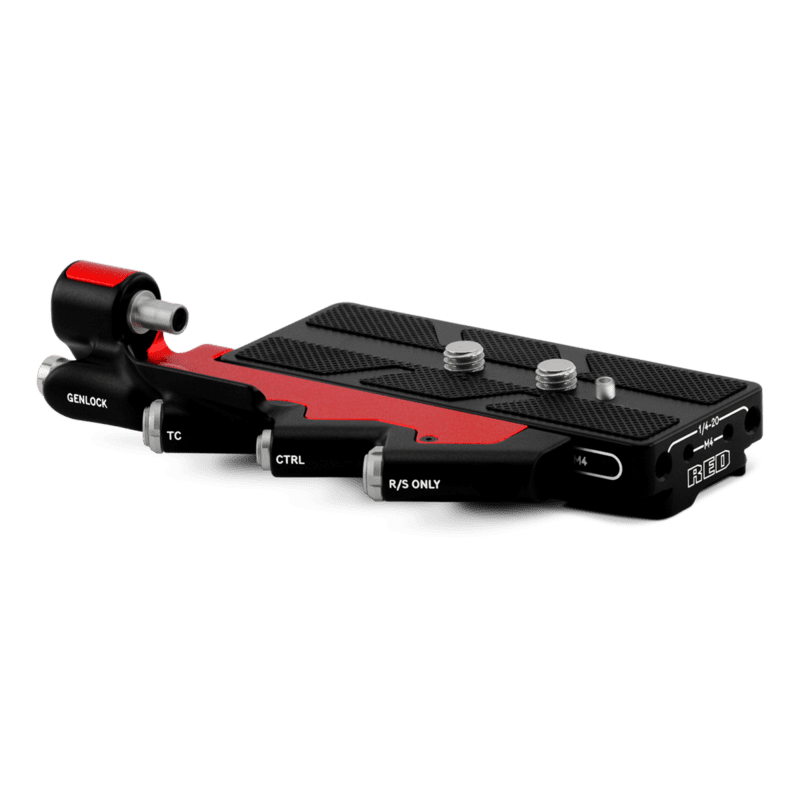

V-RAPTOR™ Expander Blade is designed to support professional shooting configurations. With options for video and communication connections, including Genlock (BNC), Timecode 5-Pin, R/S (Run/Stop) 3-Pin, and RED CTRL 4-pin.
Product Details
SPECIFICATION
| DIMENSIONS EXPANDER BLADE | Height: 1.28 in (32.5 mm) Width: 5.16 in (131.1 mm) Depth: 1.87 in (47.5 mm) |
|---|---|
| DIMENSIONS ARCA PLATE | Height: 1.28 in (20.0 mm) Width: .79 in (117.0 mm) Depth: 1.97 in (50.0 mm) |
| WEIGHT | Without Arca Plate approximately 0.22 lbs (98.75 g) With Arca Plate approximately 0.58 lbs (262.9 g) |
| CONNECTION TO V-RAPTOR | Via 9-Pin EXT Port and Arca Plate |
| CONNECTORS | 4-Pin 00, 3-Pin Fischer, 5-Pin 0B, BNC |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
