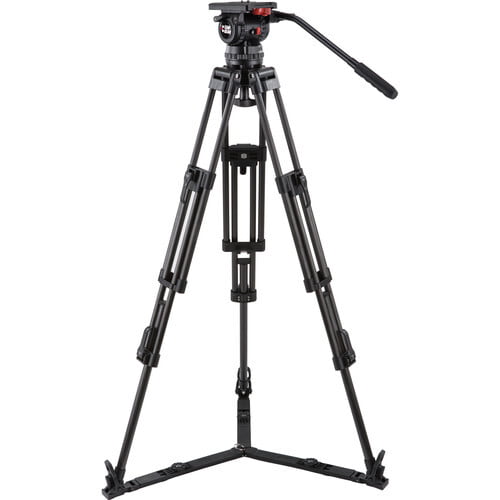

Camgear V15P CF Fluid Head & Carbon Fiber Tripod Kit (100mm)
The 100mm V15P CF Kit from Camgear includes a V15P fluid head, an ENG/CF2 carbon tripod with a ground spreader, a PB-1 pan bar, and an SB-2 carrying bag. This Camgear combo is suited for ENG-type cameras such as XDCAM to P2HD in both low- and high-profile configurations, supporting up to 33 pounds.
Specification
Camera Plate
Camera Plate Features | Quick Release |
Camera Plate Type | Mini Euro Plate |
Camera Mounting Screw | 1 x 1/4"-20 Male |
Balance Plate Sliding Range | 2.76" / 70 mm |
Tripod Platform
Base Mount | 100 mm Half Ball |
Pan & Tilt
Drag Control | 6-Step |
Vertical Tilt | +90° to -75° |
Panning Range | 360° |
Physical
Load Capacity | 33 lb / 15 kg |
Counter Balance | Incremental 8-Step |
Bubble Level | 1 x Illuminated |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Weight | 7.5 lb / 3.4 kg |
Packaging Info
Package Weight | 8.25 lb |
Box Dimensions (LxWxH) | 11.6 x 10 x 7.9" |
Camgear ENG/CF2 2-Stage 100mm Bowl Tripod With Ground Spreader (Carbon Fiber) Specs
General
Head Mount Type | 100 mm Bowl |
Load Capacity | 165.3 lb / 75 kg |
Maximum Working Height | 60.6" / 154 cm |
Minimum Working Height | 17.7" / 45 cm |
Folded Length | 28.3" / 72 cm |
Materials | Carbon Fiber |
Weight | 9.2 lb / 4.2 kg |
Legs
Leg Sections | 3 |
Camgear Pan Bar PB-1 For DV6, V10, V12, And V15 Tripod Heads Specs
Legs
For Use with | Camgear DV6, V10, V12, and V15 Tripod Heads |
Length | 13.8" (35 cm) |
Weight | 1 lb (0.45 kg) |
Packaging Info
Package Weight | 0.5 lb |
Box Dimensions (LxWxH) | 19 x 2 x 1.5" |
Camgear SB-2 Tripod Soft Bag For Select V12 And V15 Systems Specs
Carrying/Transport Options | Connecting Handles |
Type of Closure | Zipper |
Exterior Material | Nylon |
Padded | Yes |
Exterior Dimensions | H: 8.3 x W: 7.5 x L: 35.8" / H: 21.1 x W: 19.1 x L: 90.9 cm |
Interior Dimensions | H: 7.7 x W: 6.9 x L: 35.2" / H: 19.6 x W: 17.5 x L: 89.4 cm |
Weight | 2.6 lb / 1.2 kg |
