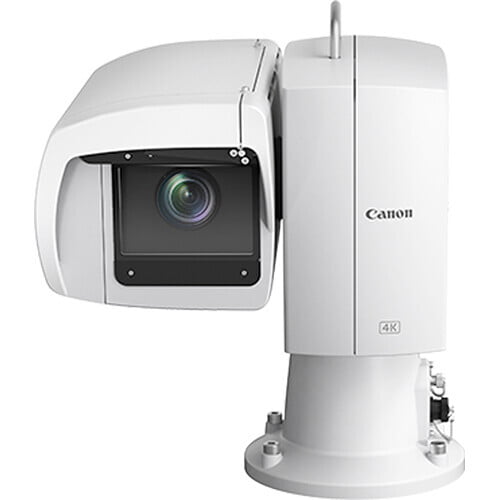

Canon CR-X500 PTZ Cameras

Color

White

Operating Condition

Outdoor

Image Sensor

Type 1.0 (1.0 in.) single-plate CMOS sensor
Total pixels: approx. 13.40 megapixels
Effective pixels: approx. 8.29 megapixels (3840 x 2160)

Lens

f=8.3 – 124.5 mm, F/2.8 – 4.5, 15x optical zoom, 9-bladed iris diaphragm
35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)

Zoom

Optical: 15x
Advanced Zoom FHD: 30x

Lens Configuration

18 elements in 14 groups (including 2 aspheric elements)

Image Stabilizer

Optical-shift

Shutter Speed

Auto, Manual 1/3 – 1/1000 sec.

Iris

Auto, Manual

Gain

Auto, Manual 0 db ～ 33.0 dB

ND Filter

Built-in (Off, 1/4, 1/16, 1/64), motor operated

Color Sampling

4:2:2, 10-bit

White Balance

AUTO (AWB), Set

Focus

Dual Pixel CMOS AF

Gamma

Normal1: BT.709, Normal1: BT.2020, Wide DR: BT709, Wide DR: BT2020, PQ: BT2020, HLG: BT2020, Canon Log 3: BT709, Canon Log 3: BT2020

Image Quality Adjustment

Master Pedestal, R-Gain, B-Gain, R-Black, B-Black, Gamma, Color Matrix, Knee, Skin Detail, Sharpness, Black Gamma, Noise Reduction

Min. Subject Illumination

Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0
