RED DSMC3 RED 5-PIN TO DUAL XLR ADAPTER
$324.25
Tags:

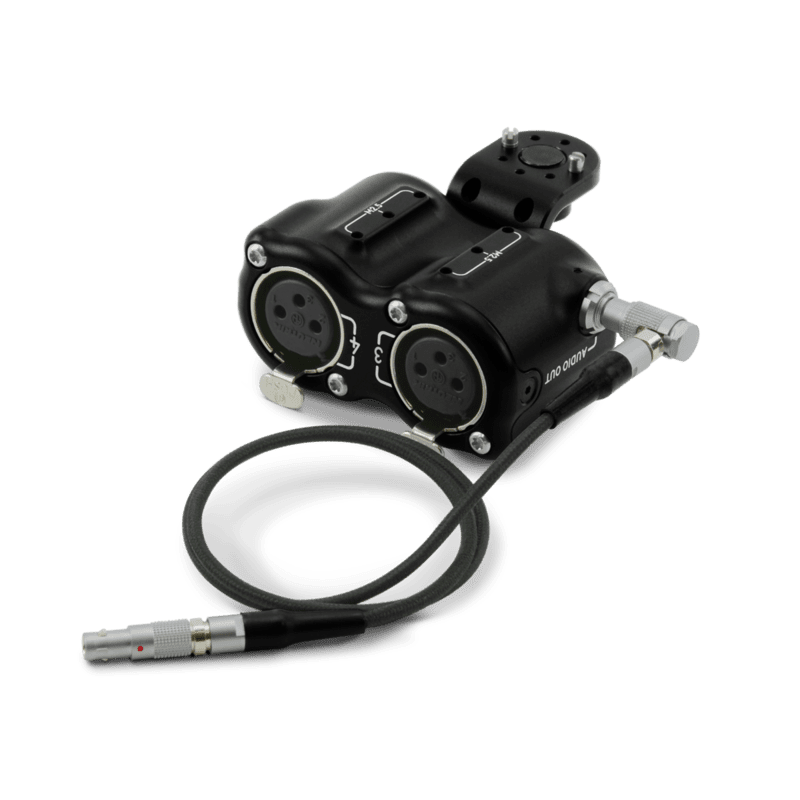

The DSMC3™ RED® 5-Pin to Dual XLR Adapter is a compact solution to break out the 5-Pin ODU port to Dual 3-Pin XLR ports.
Product Details
SPECIFICATION
| DIMENSIONS ADAPTER | Height: 1.31 in (33.15 mm) Width: 2.54 in (64.50 mm) Depth: 1.70 in (43.16 mm) |
|---|---|
| DIMENSIONS RIGHT ANGLE BRACKET | Height: 1.10 in (28.00 mm) Width: .87 in (22.00 mm) Depth: 1.10 in (28.00 mm) |
| WEIGHT ADAPTER W/ BRACKET | Approximately 0.50 lbs (224.81 g) |
| MATERIAL | Aluminum and Rubber |
| CONNECTION TO V-RAPTOR | Via 5-Pin Audio Port |
| CONNECTORS | 2x 3-Pin XLR (Female) |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
