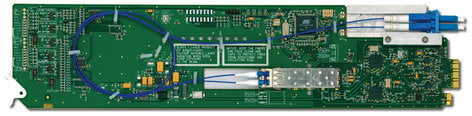

Ross Video FDT-6604-R2 3G/HD/SD SDI Dual Fiber Transmitter-inactive
The Ross Video FDT-6604-R2 is a serial digital SDI to fiber optic transmitter converter that supports serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked copies of the input providing excellent jitter and return loss specifications.
The FDT-6604-R2 includes the -R2 full rear I/O module, and is fully hot-swappable with all active components on the front removable card. No active components are installed on the rear I/O connection module. This design greatly reduces down-time eliminating any need to access the back of the rack frame. The -R2 rear module occupies 2 slots in the OG3-FR platform and supports 1 openGear® card. It features access to the full I/O connections of the main Converter/Transmitter card.
key Features:
- 2 Channels electrical to optical conversion on single card
- Electrical to Optical for all SMPTE 424M, SMPTE 259M-C, SMPTE 292M standards
- 2 Optical LC outputs, 3 reclocked copies of input 1, 1 reclocked copy of input 2, per card
- Occupies 2 Slots in an openGear frame
- Dual Optical Transmitter, 1310nm
- Supports single-mode fiber
- Hot-swappable from front of frame with no external connect / reconnect required
- Optical output power: -7dBm / 0dBm (CWDM)
- Optical wavelength: 1310nm or CWDM
- Optical output connection: LC / UPC
- Reclocked SDI outputs
- Reclocking on all outputs at 270Mb/s, 1.483Gb/s, 1.485Gb/s, 2.967Gb/s, 2.970Gb/s
- Alarms for signal presence and optical faults
- 5-year transferable warranty
- Power: 4.5 watts
Specifications:
- Optical Outputs
- Number of Outputs: 2
- SMPTE Standards Accommodated: SMPTE 259M-C, SMPTE 292M, SMPTE 424M
- Nominal Wavelength:
- FDT-6604: 1310nm
- FDT-6604-27: 1270nm, 1290nm
- FDT-6604-31: 1310nm, 1330nm
- FDT-6604-35: 1350nm, 1370nm
- FDT-6604-43: 1430nm, 1450nm
- FDT-6604-47: 1470nm, 1490nm
- FDT-6604-51: 1510nm, 1530nm
- FDT-6604-55: 1550nm, 1570nm
- FDT-6604-59: 1590nm, 1610nm
- Center Wavelength:
- FDT-6604: +/- 20nm
- FDT-6604 CWDM series: -6nm to +7.5nm
- Output Power:
- FDT-6604: -7dBm to -2dBm
- FDT-6604 CWDM series: 0 to +3dB
- Connector Type: Single Mode, LC/UPC
- Laser Type:
- FDT-6604: Fabry-Perot (FP)
- FDT-6604 CWDM Series: Distributed Feedback (DFB)
- SDI Inputs
- Number of Inputs: 2
- SMPTE Standards Accommodated: SMPTE 259M-C, SMPTE 292M, SMPTE 424M
- Impedance: 75ohm terminating11
- Return Loss:
- >15dB to 1.485GHz
- >10dB from 1.485GHz to 2.97GHz
- Cable Length with Equalizer:
- > 300m of Belden 1694A cable @ 270Mbps
- > 120m of Belden 1694A cable @ 1.485Gbps
- > 80m of Belden 1694A cable @ 2.97Gbps
- DC Offset: ±0.5V maximum
- Signal Level: Max. 1V p-p (0m cable length)
- Connector Type: BNC
- SDI Outputs
- Number of Outputs:
- Full Rear Module (-R2): 6 (including 2x Fiber Out)
- SMPTE Standards Accommodated: SMPTE 259M-C, SMPTE 292M, SMPTE 424M
- Impedance: 75ohm
- Return Loss:
- >15dB to 1.485GHz
- >10dB 1.485GHz to 2.97GHz
- Signal Level: 800mV ±10%
- DC Offset: 0V ±50mV
- Rise and Fall Time (20-80%):
- 700ps. Typical (270Mbps)
- 120ps. Typical (1.485Gbps, 2.97Gbps)
- Overshoot:
- Connector Type: BNC
- Environment
- Operating Range: 0°C to 40°C
- Power
- Power Consumption: < 5W
