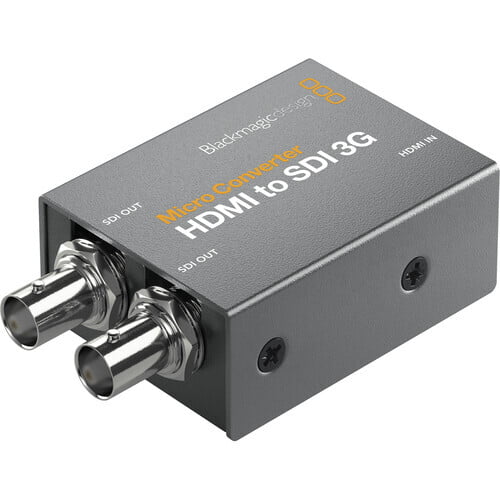

Blackmagic Design Micro Converter HDMI to SDI 3G

Video Input Connectors

1 x HDMI (HDMI 2.0)

Input Video Format

HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps

Audio Input Connectors

None

Embedded Audio Input

HDMI

Video Output Connectors

2 x BNC (3G-SDI / HD-SDI / SD-SDI)

Output Video Format

SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL (768 x 576): 25 fps

Audio Output Connectors

None

Embedded Audio Output

SDI

Video Standard Compliance

SMPTE 259M/292M/296M/424M/425M

HDCP Support

Version 2.2

Other I/O

1 x USB Type-C Input

Expansion Slots

None

OS Compatibility

macOS 10.14.15 or Later
Windows 10

Power Connector

1 x USB Type-C (4.4 to 5.2 VDC) Input

Power Consumption

2 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%

Dimensions

3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm

Weight

5.29 oz / 150 g

Warranty Length

Limited 3-Year Warranty
