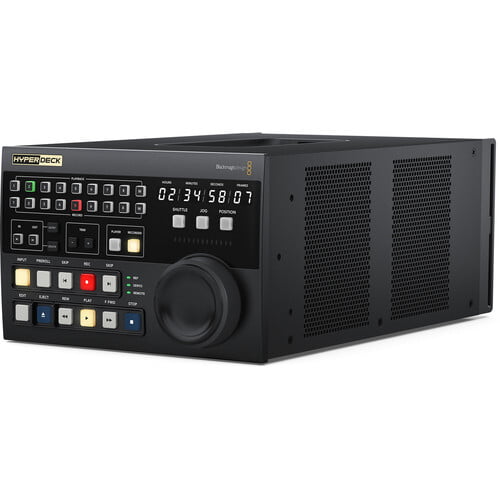

Blackmagic Design HyperDeck Extreme Control

Deck Control Outputs

8 x RS-422

Reference Input

Tri-Sync or Black Burst

Reference Output

Follows Reference Input

Ethernet

1 Gb/s

Computer Interface

1 x USB Type-C

Control Protocols

Sony

Internal Software Upgrade

Loaded at System Start or via Blackmagic HyperDeck Setup Using USB Port

Operating System Support

Mac 10.13 High Sierra, 10.14 Mojave, or later
Windows 8.1 or 10

Display

8-Digit, 7-Segment LED Timecode Display

Power Supply

1 x Internal 100 - 240 VAC
1 x 4-Pin XLR 12 VDC

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 60°C

Relative Humidity

0 to 90% Non-Condensing

Rack Compatibility

3 RU, Half Rack Width

Dimensions

8.3 x 5.1 x 13.8" / 21 x 13 x 35 cm

Weight

3.5 lb / 1.6 kg
