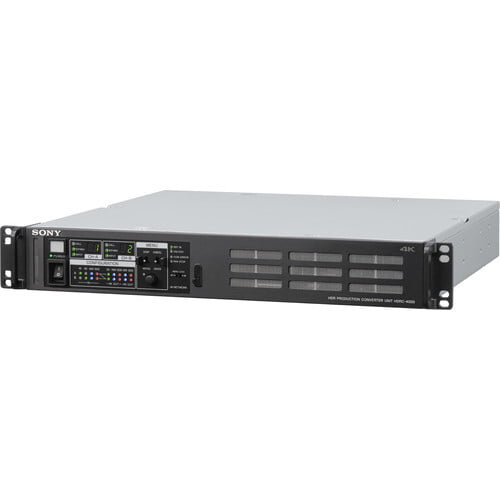

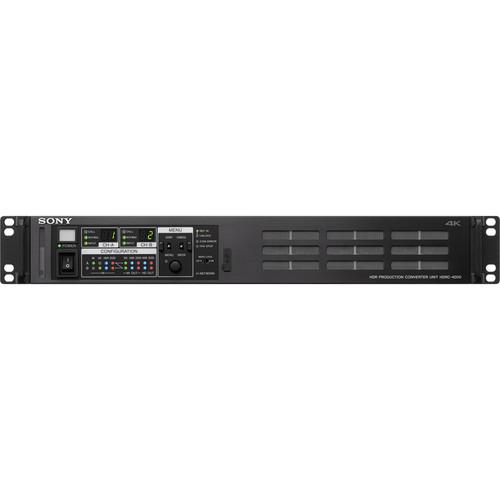

Sony HDRC-4000 HDR Production Converter Uni
Non-returnable
$28,769.23
Tags:
The HDRC-4000 HDR production converter unit provides simultaneous real-time streams for multi-purpose 4K HDR (High Dynamic Range) live production as part of powerful Sony SR Live for HDR workflows.
Product Details
SPECIFICATION
Power requirements
100 V to 240 V AC, 50/60 Hz
Current consumption
1.4 A (max.)
Operating temperature
5 °C to 40 °C (41 °F to 104 °F)
Storage temperature
-20 °C to +60 °C (.4 °F to +140 °F)
Mass
Approx. 6.8 kg (15 lb)

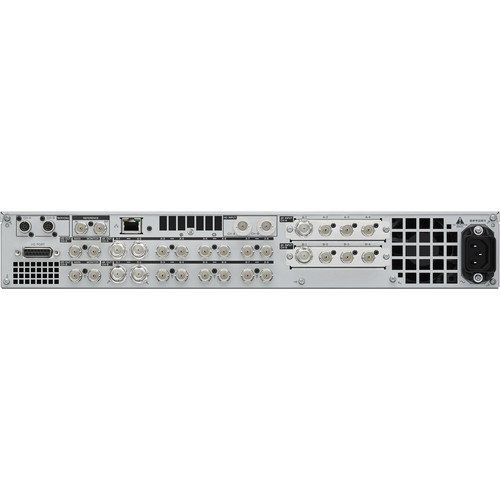

Input/output connectors
I/O PORT
D-Sub 15-pin connector
REMOTE A, B
8-pin multi-connector (2)
LAN
RJ-45 (8-pin) (1) (for MSU/RCP connection)
Input connectors
AC IN
100 V to 240 V AC (1)
Input Signal Format
4K：3840 x 2160/59.94P, 50p, 29.97P, 29.97PsF, 25P, 25PsF, 24P,24PsF, 23.98P, 23.98PsF
HD：1920 x 1080/59.94P, 59.94i, 50P, 50i, 29.97PsF, 25PsF, 24PsF,23.98PsF
1280 x 720/59.94P, 50P
HD：1920 x 1080/59.94P, 59.94i, 50P, 50i, 29.97PsF, 25PsF, 24PsF,23.98PsF
1280 x 720/59.94P, 50P
4K INPUT-A, 4K INPUT-B (3G/HD-SDI INPUT)
BNC (4+4)
12G-SDI (Link1 only): SMPTE ST2082 0.8 Vp-p, 75 ohms, 11.880 Gbps/11.868Gbps
6G-SDI (Link1 only): SMPTE ST2081, 0.8 Vp-p, 75 ohms, 5.940 Gbps/5.934 Gbps
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
12G-SDI (Link1 only): SMPTE ST2082 0.8 Vp-p, 75 ohms, 11.880 Gbps/11.868Gbps
6G-SDI (Link1 only): SMPTE ST2081, 0.8 Vp-p, 75 ohms, 5.940 Gbps/5.934 Gbps
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
HD INPUT-A, HD INPUT-B (3G/HD-SDI INPUT)
BNC (1+1)
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
REFERENCE IN/OUT
BNC (2) Loop through output
HD: SMPTE ST274, tri-level sync, 0.6 Vp-p,75 ohms
SD: Black burst (NTSC: 0.286 Vp-p, 75 ohms/PAL: 0.3 Vp-p, 75 ohms)
HD: SMPTE ST274, tri-level sync, 0.6 Vp-p,75 ohms
SD: Black burst (NTSC: 0.286 Vp-p, 75 ohms/PAL: 0.3 Vp-p, 75 ohms)
Output connectors
Output Signal Format
4K：3840 x 2160/59.94P, 50P, 29.97P, 29.97PsF, 25P, 25PsF, 24P,24PsF, 23.98P, 23.98PsF
HD：1920 x 1080/59.94P, 59.94i, 50P, 50i, 29.97PsF, 25PsF, 24PsF,23.98PsF
HD：1920 x 1080/59.94P, 59.94i, 50P, 50i, 29.97PsF, 25PsF, 24PsF,23.98PsF
4K OUT-A, 4K OUT-B (3G/HD-SDI OUTPUT)
BNC (8+8)
12G-SDI (Link1 only): SMPTE ST2082 0.8 Vp-p, 75 ohms, 11.880 Gbps/11.868Gbps
6G-SDI (Link1 only): SMPTE ST2081, 0.8 Vp-p, 75 ohms, 5.940 Gbps/5.934 Gbps
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
12G-SDI (Link1 only): SMPTE ST2082 0.8 Vp-p, 75 ohms, 11.880 Gbps/11.868Gbps
6G-SDI (Link1 only): SMPTE ST2081, 0.8 Vp-p, 75 ohms, 5.940 Gbps/5.934 Gbps
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
HD OUT-A MAIN, HD OUT-B MAIN (3G/HD-SDI OUTPUT)
BNC (1+1)
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
3G-SDI/HD-SDI selectable
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
3G-SDI/HD-SDI selectable
HD OUT-A MONITOR, HD OUT-B MONITOR (HD-SDI OUTPUT)
BNC (1+1)
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps
Supplied accessories
Supplied accessories
Number plates (1 set)
Operation Guide (1)
Operation Manual (CD-ROM) (1
Operation Guide (1)
Operation Manual (CD-ROM) (1
