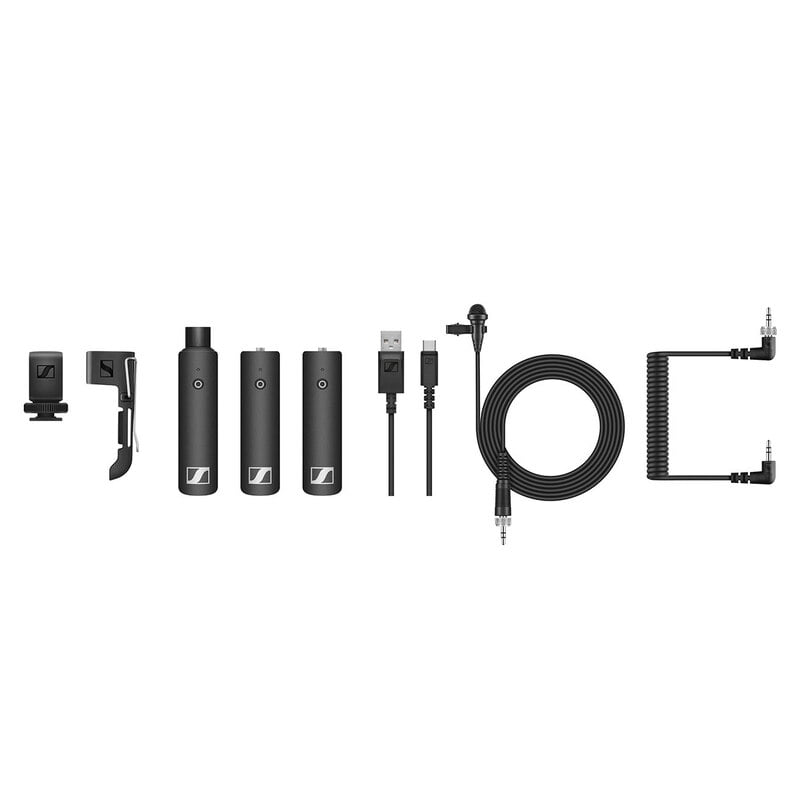

Sennheiser XSW-D PORTABLE ENG SET
The utmost flexibility amongst our XS Wireless Digital Series for capturing camera audio. Plug it in, power it up, and immediately be up and running.
SPECIFICATION
Dimensions
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
THD, total harmonic distortion
< 0.1 %
Charging time
typ. 3 h
Audio output
max. 12 dBu
Operating temperature
-10 °C to +55 °C (14 °F to 131 °F)
Signal-to-noise ratio
≥ 106 dB
Operating time
up to 5 h
Modulation
GFSK with TDMA
Battery Specification
Li-Ion
Capacity
850 mAh
Codecs
aptX® Live
Frequency range
2,400 - 2,483.5MHz
Max. Input voltage
typ. 5.0 V
Transmission power
max. 10 mW
Voltage
3.7 V
Operating relative humidity
95 % (non-condensing)
Latency
< 4 ms
Temperature Range
0 °C - 60 °C (32 °F - 140 °F)
Audio frequency response
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz
