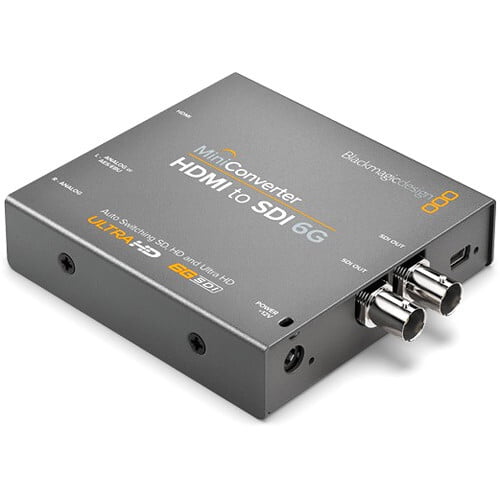

Blackmagic Design Mini Converter - HDMI to SDI 6G

Video Input

1 x HDMI, Type A

Video Output

2 x 6G-SDI

Multi-Rate Support

Auto detection of SD, HD, 3G, or 6G-SDI signals

Reclocking

Yes

Audio Input

Analog: 2 channels with 1 x 1/4" jack per channel
AES/EBU: 4 channels with 1 x 1/4" jack

Format Support

DCI 4K
24p

UHD 4K
3840 x 2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD
NTSC: 525i/59.94
PAL: 625i/50

SDI Compliance

SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081
ITU-R BT.656 and ITU-R BT.601

SDI Video Rates

Switchable between SD, HD, Ultra HD and DCI 4K

SDI Video Sampling

4:2:2

SDI Color Precision

4:2:2

SDI Color Space

YUV

SDI Audio Sampling

24-bit, 48 kHz

SDI Auto Switching

Automatically detects SD, HD, or 6G-SDI

HDMI Format Support

UHD 4K
3840 x 2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD
NTSC: 525i/59.94
PAL: 625i/50

HDMI Color Space

YUV and RGB

HDMI Color Precision

4:2:2
4:4:4

HDCP Compliance

No. HDMI input is unable to capture from copy-protected HDMI sources

Format Conversion

HD down-conversion

Settings Control

Mini switches or USB software

Firmware Upgradeable

Via USB

Power Supply

12 VDC

Power Consumption

4.44 W

Operational Voltage Range

12 to 31 VDC

Operating Temperature

32 to 104°F / 0 to 40 °C

Storage Temperature

-4 to 113°F / -20 to 45 °C

Relative Humidity

0 to 90% non-condensing

Dimensions

4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm

Weight

8.6 oz / 243.8 g
