Sennheiser EW 100 G4-865-S-A
$900.00
Tags:

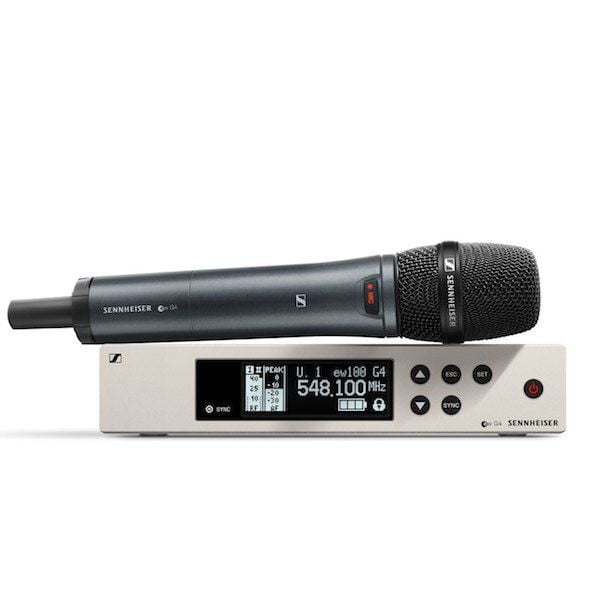

Rugged all-in-one wireless system for singers and presenters. Set consists of 1 SKM 100 G4 handheld with mute switch, 1 MMD 845-1 capsule (supercardioid, dynamic), 1 EM 100 G4 rackmount receiver, 1 rack kit, 1 RJ10 linking and mic clip.
Product Details
- SPECIFICATION
- Frequency range
- A: 516 - 558 MHz
- SPECIFICATION
- Dimensions
- Approx. 190 x 212 x 43 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- Approx. 980 g
- Audio output
- 6.3 mm jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBu
- Signal-to-noise ratio
- ≥ 110 dBA
- Switching bandwidth
- up to 42 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Modulation
- Wideband FM
- Power supply
- 12 V DC
- Antenna connector
- 2 BNC sockets
- Current consumption
- 300 mm
- Adjacent channel rejection
- Typically ≥ 65 dB
- Intermodulation attenuation
- Typically ≥ 65 dB
- Receiving frequency
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity
- < 2.5 μV for 52 dBA eff S/N
- Squelch
- low: 5 dBµV middle: 15 dBµV high: 25 dBμV
- Equalizer
- Preset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range
- -10 °C to +55 °C
- Receiver Principle
- True diversity
- Blocking
- ≥ 70 dB
SKM 100 G4-S
- Dimensions
- Approx. Ø 50 x 265 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- (incl.batteries) approx. 450 g
- Signal-to-noise ratio
- ≥ 110 dB
- RF output power
- Max. 30 mW
- Switching bandwidth
- up to 42 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Operating time
- Typically 8 h
- Modulation
- Wideband FM
- Power supply
- 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
- at nominal voltage: typ. 180 mAwith transmitter switched off: ≤ 25 µA
- Input impedance
- 40 kΩ
- Max. Input voltage
- 3 Veff
- Powering
- 3 V battery / 2.4 V rechargeable battery
- Transmission frequency
- Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response
- 80 – 18,000 Hz
- Temperature Range
- -10 °C to +55 °C
- Frequency stability
- ≤ ±15 ppm
MMD 845-1
- Sound pressure level (SPL)
- 154 dB SPL
- Transducer principle
- dynamic
- Pick-up pattern
- supercardioid
- Sensitivity
- 2.1 mV/Pa
