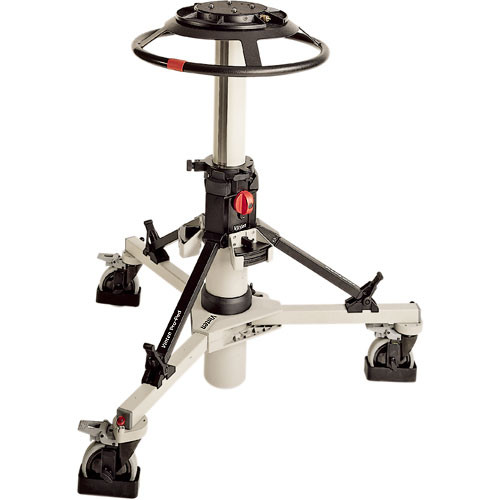

Vinten Pedestal Pro-Ped Studio - Black
The Vinten Pro Ped Studio Pedestal is a lightweight, economical, Mitchell flange-mount pedestal meant primarily for field use, and supports up to 120 lbs (55 kg). It features a self-pumping pneumatic counterbalance system capable of suspending the payload within a 32.0" (81.5 cm)
Specification
General | |
Load Capacity | 120 lbs (55 kg) |
Trim Ring | 7.5 lbs (3.4 kg) |
Bowl Diameter/Thread | Mitchell flange |
Steering Ring Diameter | 21.0" (53.4 cm) |
Folded/Transport Length | Not Specified by Manufacturer |
Minimum Height | 26.2" (66.6 cm) |
Maximum Height | 58.1" (147.5 cm) |
Weight | 70.0 lbs (31.8 kg) |
Post | |
Stages | 2 |
On-Shot Stroke | 16.1" (41.0 cm) |
Dolly | |
Doorway Tracking Width | 38.0" (97.0 cm) |
Transit Doorway Width | 34.0" (86.0 cm) |
Narrow Doorway Width | 27.5" (70.0 cm) |
Wheel Diameter | 5.0" (12.5 cm) |
Wheel Lock | Foot-operated |
Cable Guards | Yes |
