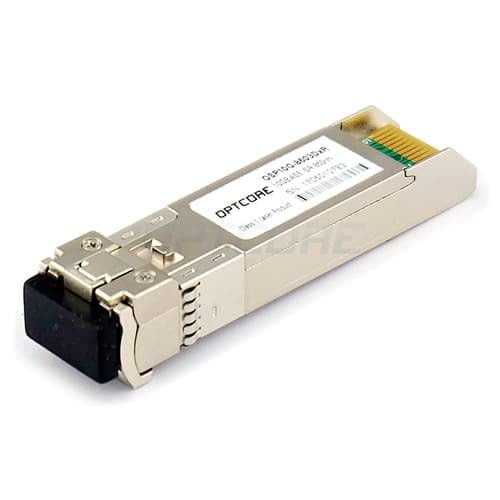

Sony OTM-10GSR1 Compatible 10GBASE-SR SFP+ 850nm 300m Transceiver
This Sony OTM-10GSR1 compatible transceiver is third party 10GBASE-SR SFP+ Ethernet transceiver. It provides a high performance and cost-effective solution for 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) fiber connectivity over multimode fiber cable.
Specification
OEM Part Number | OTM-10GSR1 | Optcore Part Number | OSP10G-8503DCR |
Form Factor | SFP+ | Data Rate | 10Gb/s |
Wavelength | 850 nm | Fiber Type | MMF |
Max Distance | 300 m | Optical Components | VCSEL/PIN |
Transmitter Power | -6 ~ -1 dBm | Extinction ratio | > 3.5 dB |
Receiver Sensitivity | < -10 dBm | Receiver Overload | > 0.5 dBm |
Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
Environment | Operating: 0°C to 70°C | Weight | 0.03 kg |
Application | 10GBASE-SR/10GBASE-SW Ethernet 10G Fibre Channel 10GbE Data Center Switches and Routers | Compliance | IEC/EN 61000-4-2,IEC-60825 |
