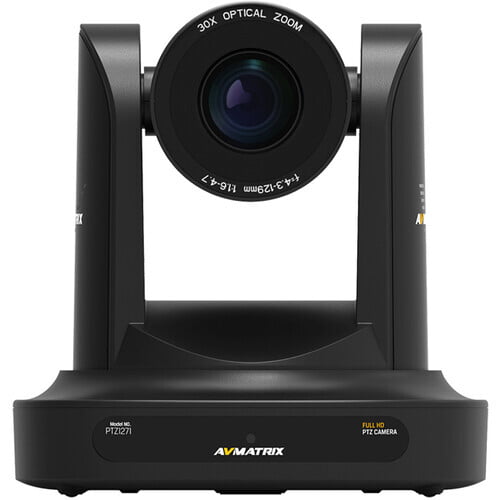

AVMATRIX HDMI/SDI PTZ Live Streaming Camera with POE (LAN) PTZ1271-30X-POE
$1,099.00
Tags:
AVMatrix PTZ1271-30X-POE Full HD PTZ Camera. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN.
Product Details
SPECIFICATION
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Optical Zoom Ratio | 30x |
| Max Digital Zoom | 10x |
| External Recording Modes | SDI/BNC / HDMI 1920 x 1080p |
| IP Streaming | RTMP, RTSP, SRT 1920 x 1080 |
Imaging
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus |
Exposure Control
| Signal-to-Noise Ratio | 55 dB |
| Flip / Mirror Support | Image Flip |
| White Balance | 3000 to 7000K |
Lens
| Focal Length | 4.3 to 129mm |
| Optical Zoom Ratio | 30x |
| Max Digital Zoom | 10x |
| Field of View | 65.1 to 2.34° |
| Maximum Aperture | f/1.6 to 4.7 |
Video Capture
| External Recording Modes | SDI/BNC / HDMI 1920 x 1080p |
| Broadcast Output | NTSC |
| IP Streaming | RTMP, RTSP, SRT 1920 x 1080 |
Control
| Presets | 255 |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | Pelco-D Pelco-P VISCA |
Interface
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x RJ45 (LAN) 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x Block (RS-485) Input |
Power
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel Input |
| Power Consumption | Device: 12 VDC at 1 A (12 W) |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Storage Humidity | 20 to 95% (Non-Condensing) |
General
| Mounting | 1 x 1/4"-20 Female for Tripod |
| Dimensions (W x H x D) | 6.7 x 7.1 x 6.7" / 170 x 180.31 x 170 mm |
| Weight | 2.76 lb / 1.25 kg |
Packaging Info
| Package Weight | 4.885 lb |
| Box Dimensions (LxWxH) | 10.5 x 9.8 x 9.2" |
