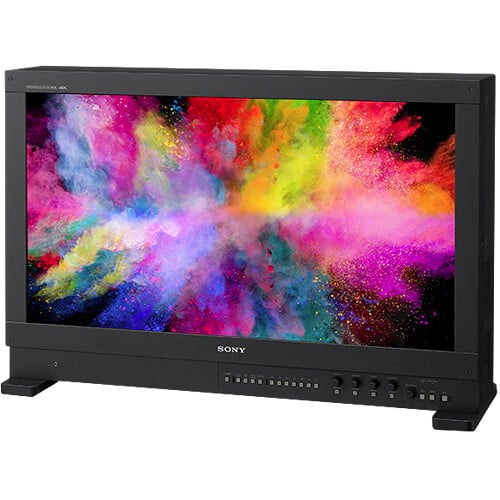

Sony Trimaster HX 31" 4K HDR Master Monitor BVM-HX310Sony Trimaster HX 31" 4K HDR Master Monitor BVM-HX310

Number of Displays

1

Panel Type

TFT LCD

Display Size

31.1" / 79.0 cm

Active Area

27.48 x 14.49" / 698 x 368.1 mm

Screen Resolution

4096 x 2160

Aspect Ratio

17:9

Viewing Angle

Horizontal: 89°
Vertical: 89°

Touchscreen

No

Maximum Brightness

1000 cd/m²

Dynamic Contrast Ratio

1,000,000:1

Bit Depth / Color Support

10-Bit (1.07 Billion Colors)

Pixels Per Inch (ppi)

9 ppi

Video

6 x BNC (3G-SDI) Input
6 x BNC (3G-SDI) Output
2 x BNC (12G-SDI) Input
2 x BNC (12G-SDI) Output
1 x HDMI Type A (HDMI 1.4) Input

HDCP Support

Yes, Version 2.3

Audio

1 x 3.5 mm Headphone/Monitor Output

Built-In Speaker

None

Power

1 x IEC Input

Other I/O

1 x LAN (RJ45)

Card Slot

None

AC Input Power

100 to 240 VAC, 50 / 60 Hz at 5.1 to 2.1 A

Battery Type

None

Power Consumption

450 W (Maximum)

Operating Humidity

30 to 85%

Operating Temperature

32 to 95°F / 0 to 35°C

Storage Humidity

0 to 90%

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions (W x H x D)

30.63 x 20.45 x 9.06" / 778 x 519.5 x 230 mm

Weight

63.93 lb / 29 kg

Warranty Length

Limited 1-Year Warranty

Package Weight

72.2 lb

Box Dimensions (LxWxH)

36 x 25.5 x 14"
