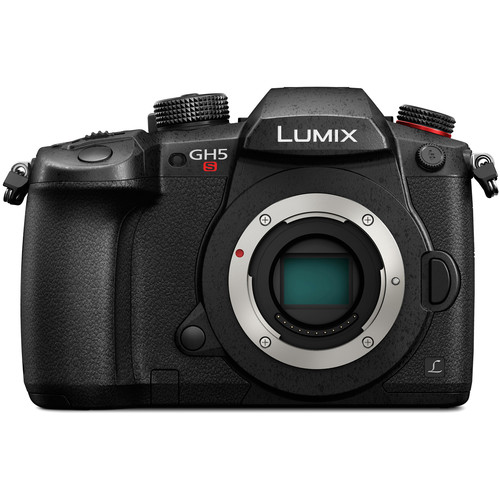

Panasonic Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera

Lens Mount

Micro Four Thirds

Sensor Type

17.3 x 13 mm (4/3") MOS

Sensor Resolution

Actual: 11.93 Megapixel
Effective: 10.28 Megapixel (3680 x 2760)

Crop Factor

2x

Aspect Ratio

1:1, 3:2, 4:3, 16:9

Image File Format

JPEG, Raw

Bit Depth

14-Bit

Image Stabilization

None

ISO Sensitivity

Auto, 160 to 51200 (Extended: 80 to 204800)

Shutter Speed

Electronic Front Curtain Shutter
1/8000 to 60 Seconds
1 to 30 Minutes in Bulb Mode
1/16000 to 1/24 Second in Movie Mode
Electronic Shutter
1/16000 to 1 Second

Metering Method

Center-Weighted Average, Multiple, Spot

Exposure Modes

Aperture Priority, Manual, Program, Shutter Priority

Exposure Compensation

-5 to +5 EV (1/3 EV Steps)

Metering Range

0 to 18 EV

White Balance

Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4

Continuous Shooting

Up to 12 fps at 10.3 MP for up to 80 Frames (Raw) / 600 Frames (JPEG)
Up to 8 fps at 10.3 MP
Up to 7 fps at 10.3 MP
Up to 6 fps at 10.3 MP
Up to 5 fps at 10.3 MP
Up to 2 fps at 10.3 MP
Up to 60 fps at 8 MP

Interval Recording

Yes

Self-Timer

2/10-Second Delay

Recording Modes

AVCHD
Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
Full HD (1920 x 1080) at 50i/59.94i [17 to 24 Mb/s]
Full HD (1920 x 1080) at 23.976p [24 Mb/s]
MP4 4:2:0 10-Bit
UHD 4K (3840 x 2160) at 23.976p/25p/29.97p [72 Mb/s]
MOV/MP4 4:2:0 8-Bit
DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p [100 Mb/s]
DCI 4K (4096 x 2160) at 50p/59.94p [150 Mb/s]
UHD 4K (3840 x 2160) at 23.976p/24.00p/25p/29.97p [100 Mb/s]
UHD 4K (3840 x 2160) at 50p/59.94p [150 Mb/s]
Full HD (1920 x 1080) at 23.976p/24.00p/25p/29.97p/50p/59.94p [100 Mb/s]
Full HD (1920 x 1080) at 25p/29.97p [20 Mb/s]
Full HD (1920 x 1080) at 23.976p/24.00p [24 Mb/s]
Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
MOV/MP4 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.976p/24.00p [150 to 400 Mb/s]
DCI 4K (4096 x 2160) at 25p/29.97p [150 Mb/s]
UHD 4K (3840 x 2160) at 23.976p/24.00p/25p/29.97p [150 to 400 Mb/s]
Full HD (1920 x 1080) at 23.976p/24.00p/25p/29.97p/50p/59.94p [100 to 200 Mb/s]

External Recording Modes

4:2:2 10-Bit

Video Encoding

NTSC/PAL

Audio Recording

Built-In Microphone (Stereo)
External Microphone Input

Audio File Format

AAC, Dolby Digital 2ch, Linear PCM (Stereo)

Focus Type

Auto and Manual Focus

Focus Mode

Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-Servo AF (S)

Autofocus Points

Contrast Detection: 225

Autofocus Sensitivity

-5 to +18 EV

Viewfinder Type

Electronic

Viewfinder Resolution

3,686,000 Dot

Viewfinder Eye Point

21 mm

Viewfinder Coverage

100%

Viewfinder Magnification

Approx. 0.76x

Diopter Adjustment

-4 to +3

Size

3.2"

Resolution

1,620,000 Dot

Display Type

Articulating Touchscreen LCD

Built-In Flash

No

Flash Modes

Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction

Maximum Sync Speed

1/250 Second

Flash Compensation

-3 to +3 EV (1/3 EV Steps)

Dedicated Flash System

TTL

External Flash Connection

Hot Shoe, PC Terminal

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-II)

Connectivity

3.5mm Headphone, 3.5mm Microphone, 2.5mm Sub-Mini, HDMI A (Full Size), PC Sync Socket, USB Type-C (USB 3.0)

Wireless

Wi-Fi
Bluetooth

GPS

No

Operating Temperature

14 to 104°F / -10 to 40°C

Operating Humidity

10 to 80%

Battery

1 x DMW-BLF19 Rechargeable Lithium-Ion, 7.2 VDC, 1860 mAh

Dimensions (W x H x D)

5.5 x 3.9 x 3.4" / 138.5 x 98.1 x 87.4 mm

Weight

1.45 lb / 660 g (Body with Battery and Memory)

Package Weight

3.03 lb

Box Dimensions (LxWxH)

7.75 x 6 x 5.8"
