AJA HB-T-SDI SDI to HDBaseT Mini-Converter Transmitter
$646.00
Tags:

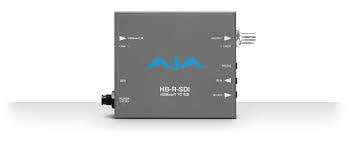

The AJA HB-T-SDI and HB-R-SDI offer an easy solution for extending SDI signals up to 100 meters over Cat 5 (or better) cable, utilizing the industry standard HDBaseT protocol.
Product Details
Specifications
- Video Formats
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 720p 25, 29.97, 50, 59.94, 60
- (SD) 625i
- (SD) 525i
- *PsF formats are converted to progressive outputs over the HDBaseT link
Video Input - HDBaseT (RJ-45)
Video Output - 3G-SDI
Video Displays - HDBaseT Cable Run Performance for 4K/UltraHD/HD
Audio Output - 3G-SDI Embedded Audio
- 8-Channels (4 pairs) of SDI embedded audio supported, select from 16-Channels (8 pairs)
RS-232 - 1x 3.5mm TRS Input for RS-232/VISCA bidirectional signals
IR - 1x 3.5mm TRS Input for IR Input
- 1x 3.5mm TRS Input for IR Output
Dimensions (WxDxH) - 4 x 4.6 x 1" (101.6 x 116.84 x 25.4mm)
Weight - 0.6Lbs (0.3kg)
Power - +5 to 20V DC regulated, 9 watts max., AJA external power supply model DWP-U-R1, 100-240V, 50/60 Hz universal input
Environment - Safe Operating Temperature: 0° to 40°C (32° to 104°F)
- Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
- Operating Relative Humidity: 10 to 90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Item Includes
- All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.
Warranty
- All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
