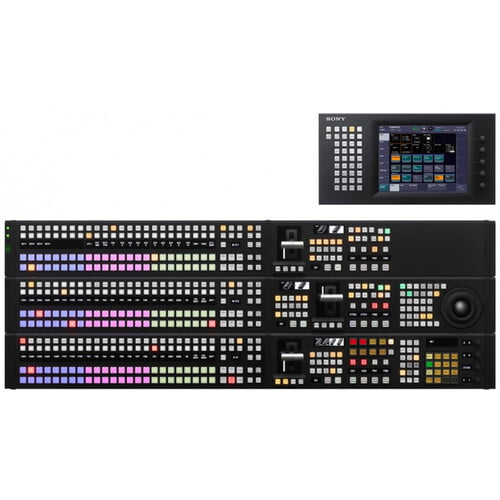

Sony MVS Series Mid-Range SD/HD Video Switcher with 3 M/E (Black)

Inputs

48 x BNC, maximum
SMPTE 292M (HDTV), SMPTE 259M-C (SDTV)

Outputs

32 x BNC, maximum
SMPTE 292M (HDTV), SMPTE 259M-C (SDTV)

Reference

2 x BNC, 75 Ohm with loop-through output
HDTV Systems: HD tri-level sync/SDTV analog sync/analog black burst
SDTV Systems: Analog black burst/analog sync

Controls

MVS LAN:
1 x RJ-45, 1000BASE-T

UTIL (SW):
1 x RJ-45, 1000BASE-T

UTIL (SCU):
1 x RJ-45, 1000BASE-T

Remote:
4 x 1 to 4 D-sub 9-pin, RS-422A

Remote:
2 x S1 to S2 D-sub 9-pin, RS-422A

Tally/GPI:
4 x D-sub 25-pin, 18 x TTL level inputs, 48 x Open collector outputs

Serial Tally:
1 x D-sub 9-pin, RS-422A

S-BUS:
1 x BNC, 75 Ohm

UTIL (FM):
1 x RJ-45, 1000BASE-T

FM Device:
USB 2.0

Power Supply

100 to 240 VAC, ±10%, 50/60 Hz

Power Consumption

4 to 1.7 A

Operating Temperature

41 to 104°F (5 to 40°C)

Storage Temperature

-4 to 131°F (-20 to 55°C)

Dimensions (W x H x D)

19 x 7 x 19" (48 x 18 x 49 cm)

Weight

46 lb (21 kg) Approx.
