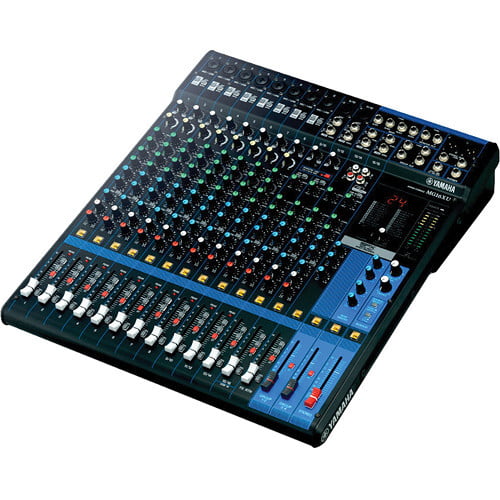

Yamaha MG16XU - 16-Input Mixer with Built-In FX and 2-In/2-Out USB Interface
The MG16XU from Yamaha is a compact mixer capable of sixteen simultaneous inputs that is ideal for performances, recordings lectures and more. The mixer features eight mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4" inputs), and two stereo line inputs with 1/4" and RCA jacks. It also features USB connectivity and is capable of providing two channels in and two channels out to your computer at up to 24-bit / 192kHz, ideal for recording live performances, demos and more.
SPECIFICATION
Yamaha MG16XU
Built-in Effects | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
Phantom Power | +48 V switchable, channels 1 - 12 |
Digital I/O | USB: USB Audio Class 2.0 compliant |
Input Channels | 8x mono [mic/line] |
Output Channels | 2x stereo out |
Bus | Stereo: 1 |
Pad | 26 dB (mono) |
HPF | 80 Hz, 12 dB/oct (mono/stereo: MIC only) |
Compressor | Threshold: +22 dBu to -8 dBu |
Equalizer | EQ high gain: +15 dB/-15 dB, frequency: 10 kHz shelving |
LED | Peak LED turns on when post EQ signal reaches 3 dB below clipping |
Total Harmonic Distortion | 0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min |
Frequency Response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min |
Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) |
Residual Output Noise | -102 dBu (STEREO OUT, STEREO master fader: min) |
Crosstalk | -78 dB |
Power Requirement | AC 100 - 240 V, 50 / 60 Hz |
Power Consumption | 30 W |
Dimensions | 17.5 x 5.1 x 19.7" (444 x 130 x 500 mm) |
Net Weight | 15.0 lb (6.8 kg) |
Packaging Info
Package Weight | 20 lb |
Box Dimensions (LxWxH) | 22 x 20.25 x 8.4" |
