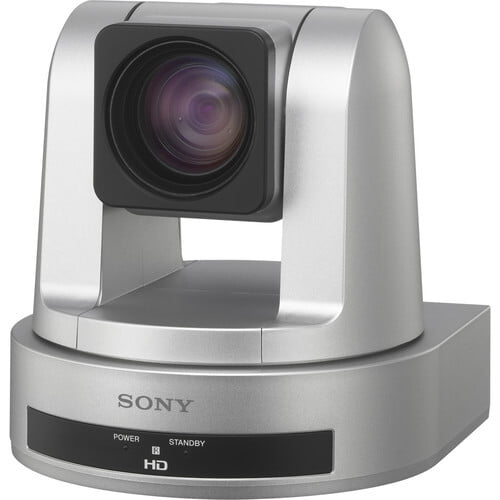

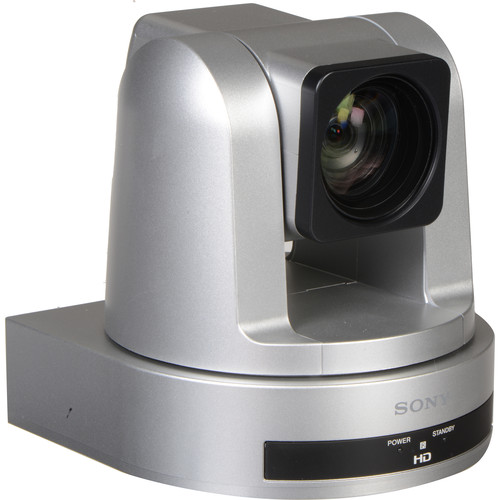

Sony SRG-120DS 12x PTZ Desktop Camera with SDI Output (Silver Housing)

Image Sensor

1 x 1/2.8" Exmor CMOS

Effective Pixels

2.1 MP (approximately)

Lens

Focal Length: 3.9-46.8mm
Aperture: f/1.8-2.0

Zoom

Optical: 12x
Digital: 12x

Minimum Object Distance

• 0.4" / 1.0 cm (wide end)
• 59.1" / 150.0 cm (tele end)

Horizontal Resolution

1000 TV lines (center)

Horizontal Viewing Angle

71° (wide)

Video Signal HD

• 1080p: 59.94/50/29.97/25
• 1080i: 59.94/50
• 720p: 59.94/50/29.97/25

Min. Illumination

High Sensitivity Mode: 0.4 lx (50 IRE, F1.8, 30 FPS) Normal Mode: 1.8 lx (50 IRE, F1.8, 30 FPS)

Shutter Speed

1/1 - 1/10000 sec

S / N Ratio

50 dB

Pan/Tilt Angle

• Pan: +/- 100°, 300°/sec
• Tilt: +25° / -25°, 126°/sec

Preset Positions

16

Video Output

3G-SDI

Camera Control Interface

Input: 8-pin Din VISCA protocol
Output: 8-pin Din VISCA protocol
IP control: RJ-45 / RS-232C

Camera Control

• Interface: RJ-45 / RS-232C
• Protocol: VISCA

Power Requirement

12 VDC (10.8 - 13.2 VDC)

Power Consumption

16.8 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions (W x H x D)

6.0 x 6.1 x 6.0" / 15.3 x 15.6 x 15.3 cm

Weight

Approx. 3.5 lb / 1.6 kg

Package Weight

5.35 lb

Box Dimensions (LxWxH)

10.394 x 10.236 x 9.213"
