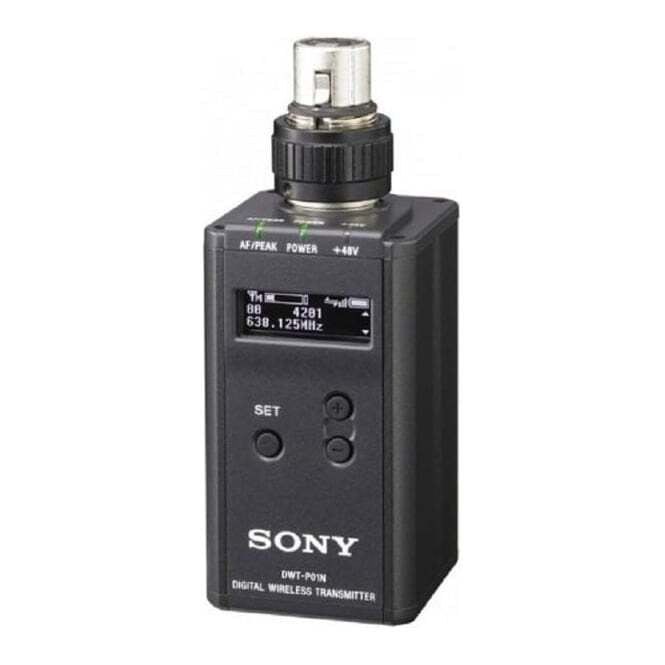

Sony DWT-P01N/21 Digital Wireless Microphone Plug-On Transmitter
Non-returnable
$1,875.38
Tags:
Sony DWT-P01N/21 (DWT-P01N-21, DWT/P01N/21, DWT_P01N_21, DWTP01N21, dwt-p01n/21) Digital Wireless Microphone Plug-On Transmitter.
Product Details
Specification
Transmitting section
- Oscillator: Crystal controlled PLL synthesizer
Carrier Frequencies: Europe, Middle East, Africa, Australia, New Zealand (depending on model):
- CE21: UHF-TV channels 21-29 470 MHz to 542 MHz
- Channel step: 25 kHz
- RF power output: 1 mW/10 mW/50 mW (e.r.p.) selectable
- Occupied RF bandwidth: 192 kHz or less
Audio delay:
- Approx. MODE1: 1.5 msec (total: 3.4msec) /MODE2: 1.0 msec (total: 1.5msec)/MODE3: 2.1 msec (total 4.0msec)
Audio section
Maximum input leve:
- lMIC -22 dBu (with 0 dB attenuator)
- LINE +24 dBu
- Audio attenuator adjustment range (pad): 0 to 48 dB (3-dB steps, MIC input mode only)
- Input connector: XLR-3-11C (female) (x1)
- Input impedance: 4.7 k/ohms or more
General
- Operating voltage: DC 3.0 V, (two LR6 AA-size alkaline batteries)
Battery life:
- Approx. 5 hours (at 25 °C (77 °F), 10-mW output using Sony LR6 (AA)-size alkaline batteries with CODEC MODE set to MODE1, the wireless remote control function off, DIMMER MODE set to AUTO OFF, and +48 V set to OFF)
- Dimensions (W x H x D): Approx. 44 x 78 x 44 mm (1 3/4 x 3 1/8 x 3/4 inches) excluding projection
- Mass: Approx. 245 g (9 oz) including batteries
