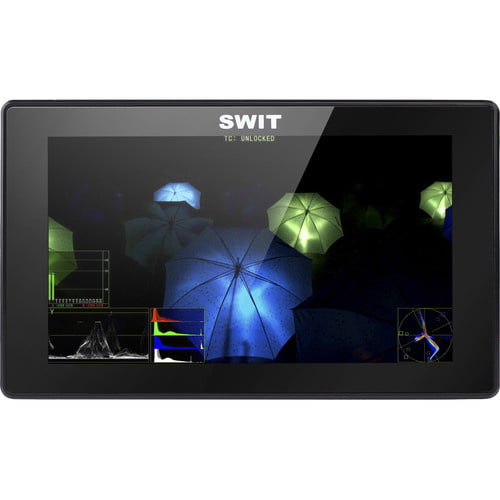

Swit S-1053F (Luxury package) 5.5" Full HD Waveform LCD Monitor with S-7003B Panasonic VW Battery Plate
The S-1053F adopts a 5.5-inch LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920×1080, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°. All Metal Housing S-1053F adopts aluminum alloy housing, thinner and robust, suitable for outdoor on-camera video monitoring.
Size | 5.5 inches |
Display area | 120.96 x 68.04mm |
Resolution | 1920 x 1080 |
Aspect ratio | 16:9 (4:3 adjustable) |
Brightness | 400cd/m2 |
Contrast | 1000:1 |
Colour | 16.77 million colors |
Viewing angle | Horizontal: 160; Vertical: 160 |
Input | |
BNC x 1 | 2K/3G/HD/SD-SDI input |
HDMI x 1 | HDMI 1.3 input |
Micro USB x 1 | Firmware upgrade |
Output | |
BNC x 1 | 2K/3G/HD/SD-SDI loop output or HDMI converted to SDI output |
3.5mm x 1 | SDI, HDMI, embedded audio output |
Video Format | |
SDI | |
SMPTE 2048-2 | 2048×1080p (23.98/24/25/29.97/30/50/59.94/60) 2048×1080i (50 / 59.94 / 60) |
SMPTE-425M | 1080p (60 / 59.94 / 50) |
SMPTE-274M | 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) |
SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
SMPTE-296M | 720p (60 / 59.94 / 50) |
SMPTE-125M | 480i (59.94) |
ITU-R BT.656 | 576i (50) |
HDMI | 480i/ 576i / 480p / 576p |
1080i (60 / 59.94 / 50) | |
720p (60 / 59.94 / 50) | |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
General | |
Working voltage | DC / battery 6.5V-24V |
Power consumption | 12W |
Working temperature | -10°C ~ +50°C |
Working humidity | 10% ~ 90% |
Storage temperature | -15°C ~ +60°C |
Storage humidity | 10% ~ 90% |
Dimensions | 151 x 91 x 32mm |
Net weight (main body) | 375g |
