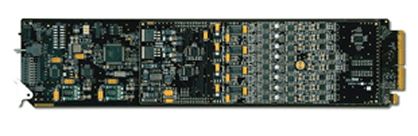

Ross Video MUX-8258-4C HD-SDI,4 Analog Audio Mux
Non-returnable
$1,602.22
Tags:
3G / HD / SD SDI Analog Audio Embedder
The ideal solution for embedding 4 or 8 analog audio sources into a 3G / HD / SD SDI signal.
Details
The MUX-8258-4 /-8C is a high quality program analog audio embedder capable of embedding up to 8 analog audio channels into an 3G / HD / SD SDI signal.
The ideal solution for embedding 4 or 8 analog audio sources into a 3G / HD / SD SDI signal.
Details
The MUX-8258-4 /-8C is a high quality program analog audio embedder capable of embedding up to 8 analog audio channels into an 3G / HD / SD SDI signal.
Product Details
- Analog audio embedding for all popular HD / SD SDI formats
- Analog gain processed entirely in the analog domain
- Audio proc amp controls; gain, invert, delay and sum
- Full control over channel assignments, primary and backup sources
- Configurable overwrite and append capability for existing embedded audio
- Programmable video output on SDI input loss
- Backup audio insertion on audio input loss
- Programmable silence detection and timeout thresholds
- No audio breakout cables required
- MUX-8258-4C Power: 9.5 watts
