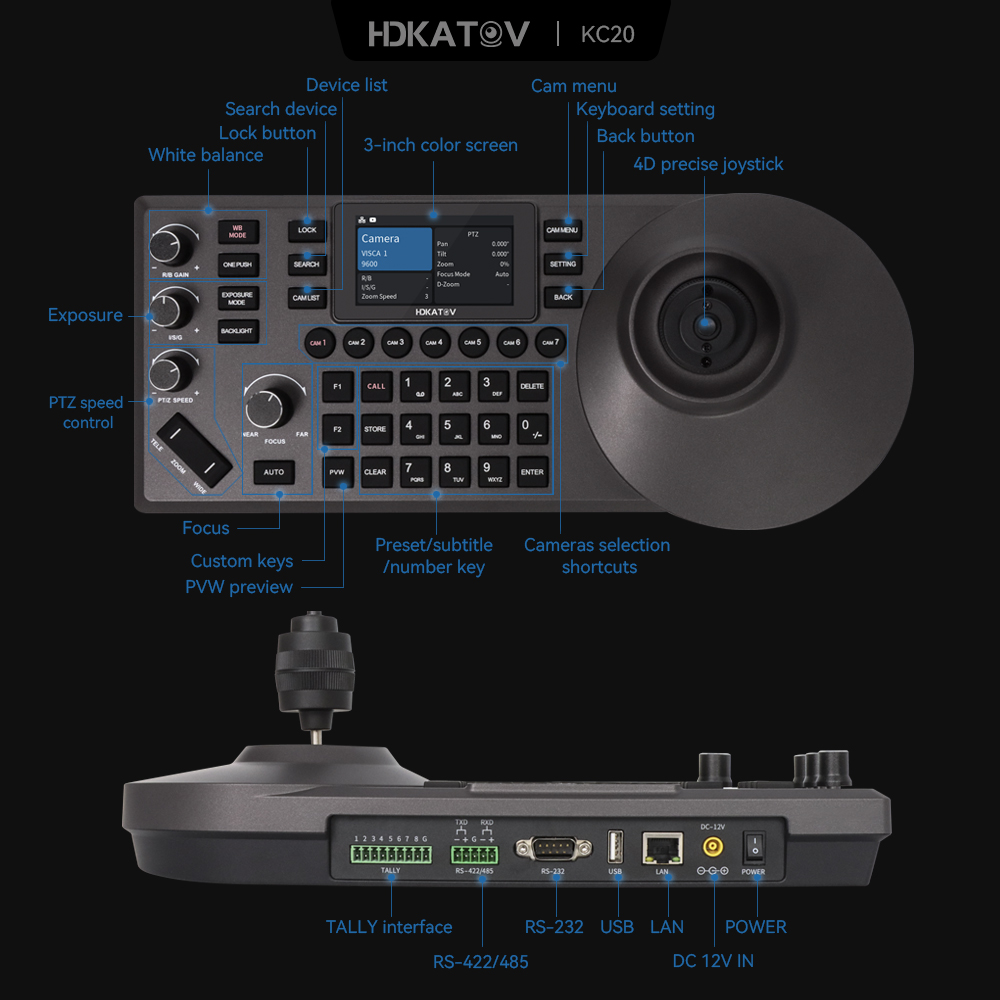

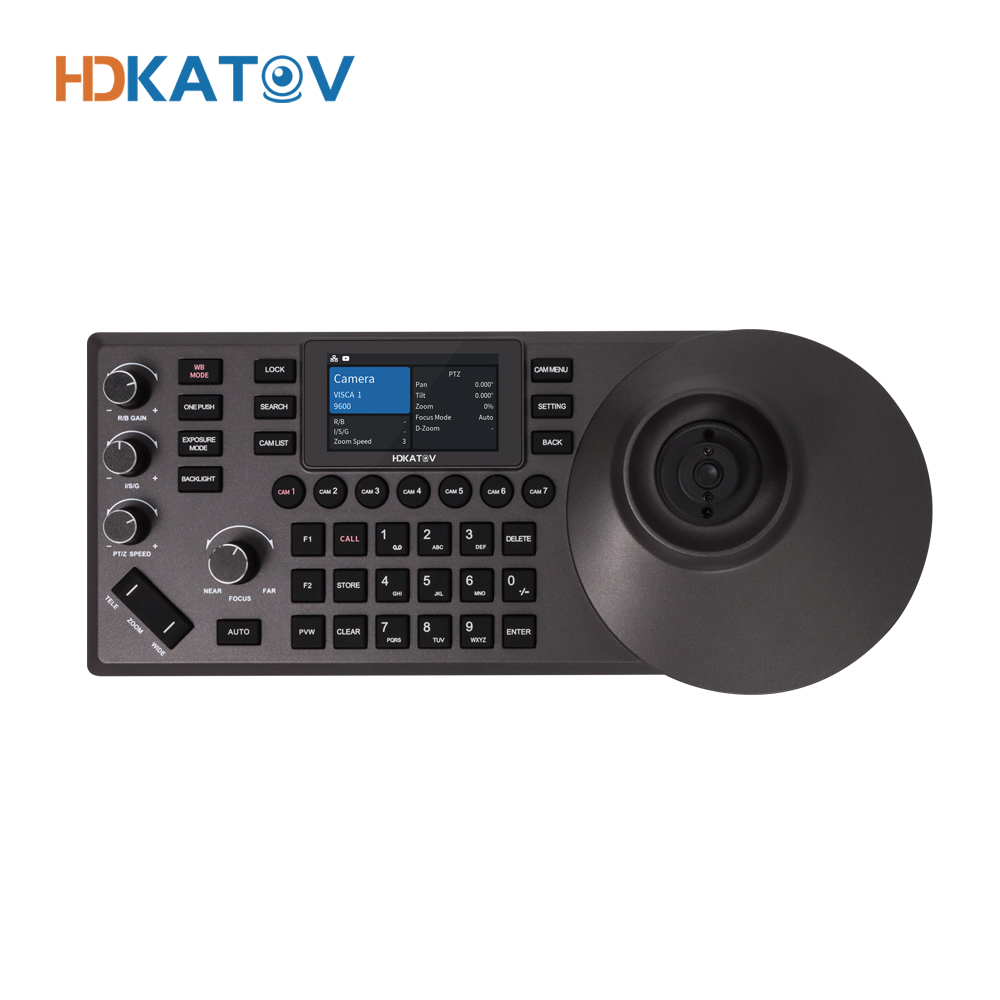

Katovision KC20N NDI controller
$599.00
Tags:
ultifunctional PTZ 4D Joystick controller Real-time Preview Image Support 7 cameras selection shortcuts Remote control of PTZ camera menu Support customizable buttons Support Onvif,Visca Over IP,Visca TCP,Visca, Pelco D/P,NDI protocol, with KATO brand
Product Details
SPECIFICATION
| Joystick | 4D precision Joystick |
| Knobs | 3D knobs, support scale rotation to adjust parameters, support button function to select mode |
| Buttons | High-quality silicone buttons, support white and red two-color backlight |
| Screen | 3″ LCD color display |
| Shortcut Button | Support 7 camera shortcut button settings |
| Button Prompt tone | Button sound prompt On/Off |
| Lock Button | Support one-key lock function |
| Max.Preset Position | 255 |
| Control | |
| Control Interface | RJ45（support POE and NDI HX2）、RS-232、RS-422/485 |
| IP Control Protocol | Onvif、VISCA Over IP、VISCA TCP、NDI |
| Serial Port Protocol | VISCA、Pelco D、Pelco P |
| Power Supply | |
| Input Voltage | 12V |
| Input Current | 0.25A |
| POE | 802.3af |
| Rated Power | 3W |
| Other | |
| Tally | Support up to eight channels |
| Operating Environment | Indoor |
| Operating Temperature | -10℃ -40℃ |
| Storage Temperature | -20℃-60℃ |
| Dimensions | 332*136*58mm（ Joystick height is not included） 332*136*116mm（Joystick height is included） |
| Weight | About 0.8 kg |
