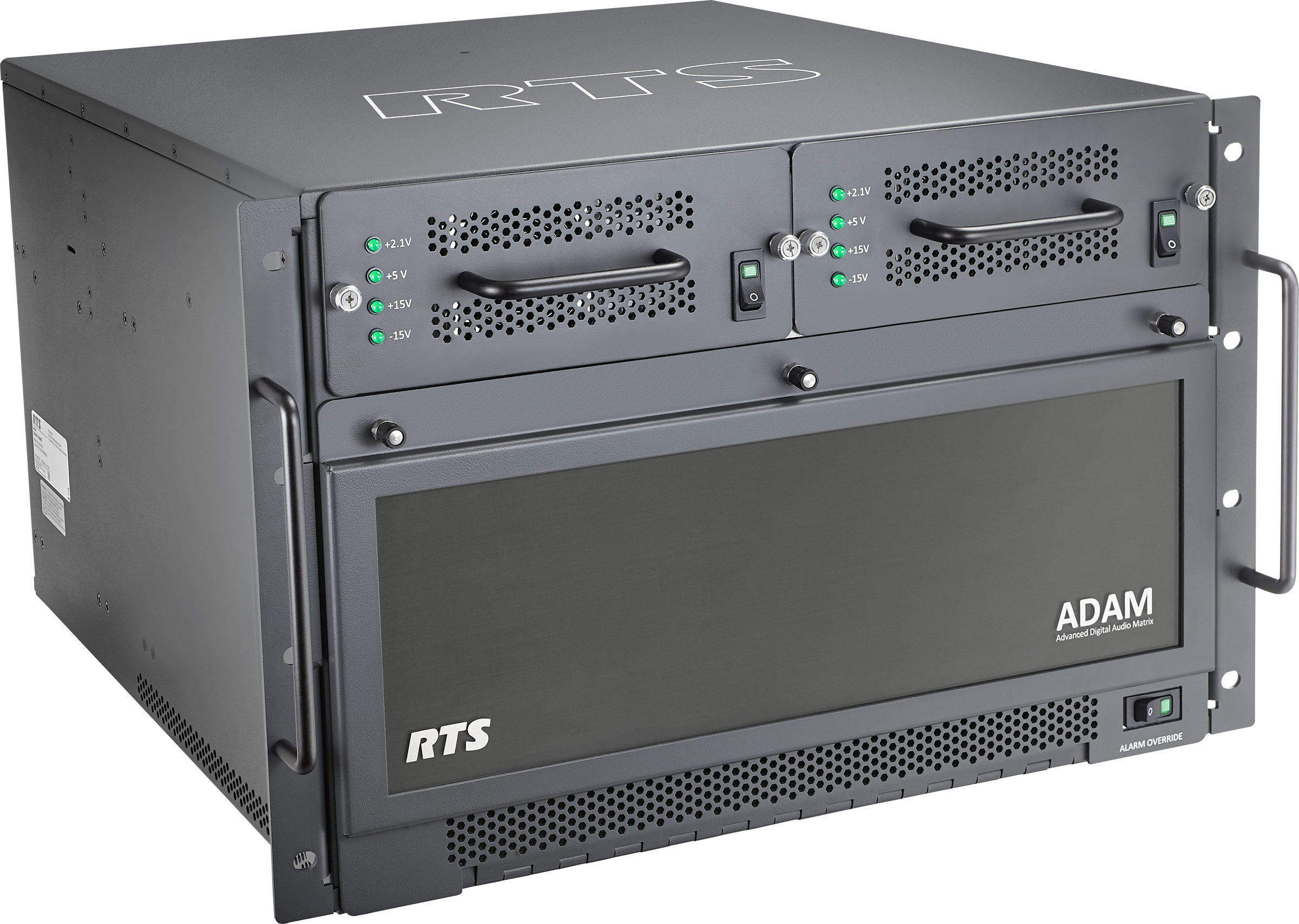

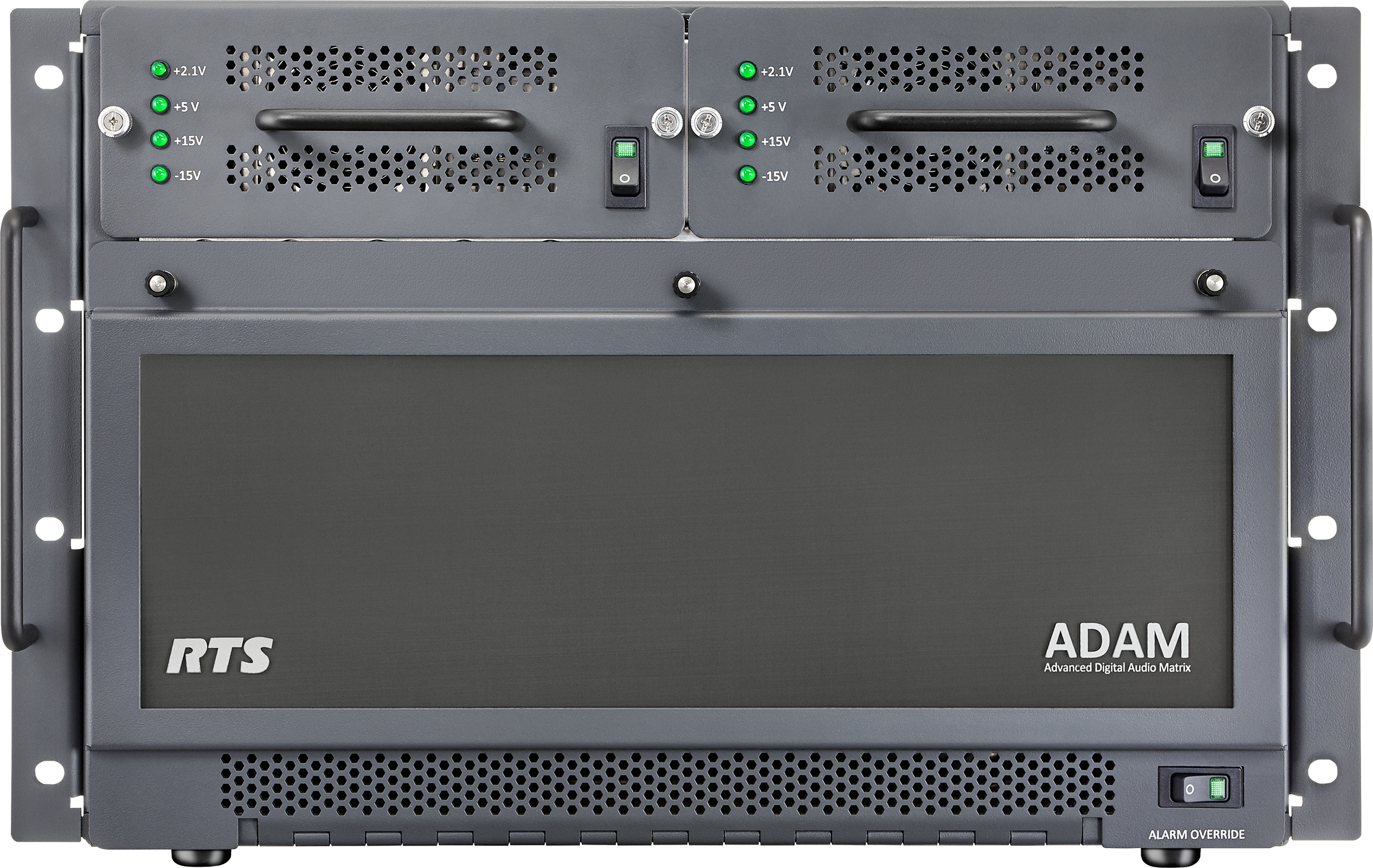

RTS ADAM 2 FRAME@PI
$27,665.18
The RTS family of Digital Intercom Matrices is the most extensive, widely used, scalable and backwards compatible line of intercoms in the world today. The high-end ADAM 2 Matrix supports 8 to 880 users per system; 512 ports possible in just a seven RU (Rack Units) frame.
Product Details
The system comes standard with redundant universal power supplies (100-240 VAC), and supports redundant controllers, allowing for automatic changeover in the event of failure.

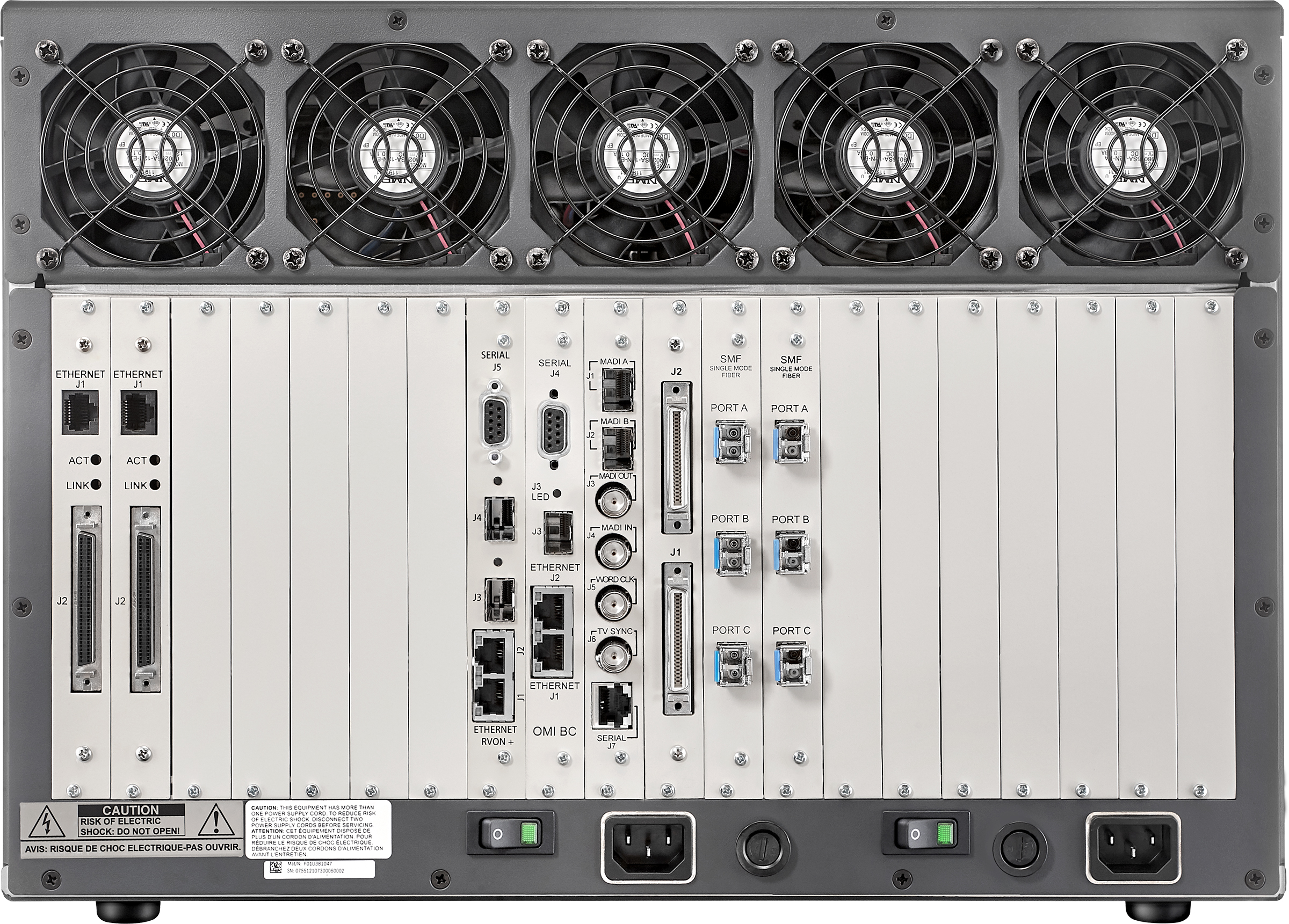

ADAM 2 is available with a wide variety of Interface cards in the industry, including the MADI-16, OMI, AIO-16A, and RVON + interfaces. It also has the wide variety of cabling options, including RJ11, RJ45, DB9, jack fields, and many others.
With its second generation controller card, Ethernet connectivity is achieved between the ADAM 2 Intercom and AZedit. ADAM 2 can support 32 simultaneous AZedit sessions.
| Matrix Size | 8 to 880 ports 17 AIO slots 2 Master Controller slots 1 Blank slot |
| Matrix Type | Digital Audio TDM Bus |
| Signal Format | 44.1 kHz, 24-bit |
| Redundancy | Power/Controller |
| Matrix Frame Dimensions | 12.25 in. (31.12 cm) H x 19 in. (48.26 cm) W x 20 in. (50.8 cm) D |
| Power | 100 VAC to 240 VAC, 50/60 Hz, 700 VA |
| Approvals | CE Compliant and UL Certified |
| Temperature | Operating 32° F to 122° F (0° C to 50° C) Storage -4° F 158° F (-20° C to 70° C) |
| Ventilation | Minimum 6” clearance to fan area, unobstructed |
