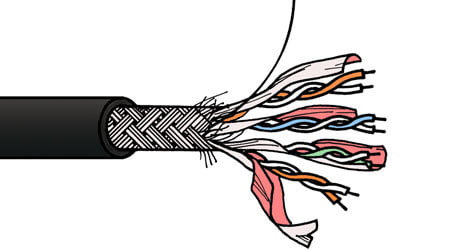

CANFORD CAT7-F CABLE Black
CANFORD CAT7-F CAT 7 DATA CABLE Stranded conductor, screened - Deployable, ruggedised
Increasing use of network and data cables between audio and video devices on location calls for a Category 7 cable that is designed specifically for deployable use. Basic Category 7 cable is a relatively inflexible installation cable, and even the slightly more
Technical Specification:
Conductors: | 7/0.16mm (0.14 sq.mm) bare copper |
Insulation: | Foamed polyethylene, 1.0mm O.D. |
Lay-up: | Two insulated conductors twisted together, pairs twisted together. |
Pair screens: | Aluminium laminated plastic foil |
Overall screen: | Tinned copper braid, 5.1mm O.D. |
Overall jacket: | Flexible polyurethane, 6.4mm O.D. |
Impedance: | 100 +/- 15 ohms |
Minimum bending radius: | 52mm |
Attenuation: | 9dB/100m (10MHz) |
26dB/100m (100MHz)) | |
41dB/100m (250MHz)) | |
67dB/100m (600MHz) | |
89dB/100m (1000MHz) | |
Near end crosstalk: | 100dB (10MHz) |
100dB (100MHz) | |
95dB (250MHz) | |
90dB (600MHz) | |
90dB (1000MHz) | |
Weight: | 3.5kg/100m |
Reel length: | 500 metre reels |
Cut lengths: | Available in any multiple of 1 metre |
